3rd Grade Quadrilaterals Worksheet Answer Key (Grade 3) – Names and Parts

    Key takeaway: Use this grade 3 quadrilaterals worksheet answer key to compare your work on all 24 problems. Each solution tests the sides and angles of a shape first, then compares the areas of its parts. Parents and teachers can see where a mistake began. In addition, the notes explain why a square also counts as a rectangle and a rhombus, because that idea confuses many third graders.

    Every problem has a full worked solution with the final answer in bold. Check the sides and angles of each shape first, then check how the areas of the parts compare. Use the steps to find where a mistake happened and to see why a shape fits its name.

    Grade 3Common Core: 3.G.A.1 · 3.G.A.2

    Grade 3 Quadrilaterals Worksheet Answer Key: problems 1–5

    1. Count the sides

    A triangle has 3 sides. The kite has 4 sides. The hexagon has 6 sides.

    Only the kite has exactly 4 sides, so the quadrilateral is B. Sides: A = 3, B = 4, C = 6.

    2. Spot the quadrilaterals

    Count the sides of each shape: A has 4, B has 3, C has 4, D has 5, E has 4.

    The quadrilaterals are A, C and E.

    3. Sides and corners

    Every quadrilateral has 4 straight sides. Each place where two sides meet is a vertex, and there are 4 of them.

    4 sides and 4 vertices.

    4. Right angles in a rectangle

    The small squares in the corners show right angles. There is one in each corner.

    The rectangle has 4 right angles. The top and bottom sides are both 6 in. The left and right sides are both 3 in, so opposite sides are equal.

    5. Sides of a rhombus

    Each side has one tick mark, so all 4 sides are equal.

    The fourth side is the same length as the other three: 5 inches.

    Grade 3 Quadrilaterals Worksheet Answer Key: problems 6–10

    6. True or false?

    1. True. All 4 sides of a square match.
    2. True. Every corner of a square is a right angle.
    3. False. A rectangle can be long and thin, like 6 in by 3 in.
    4. False. A rhombus can lean over with corners that are not right angles.

    7. Name the shape

    A: 4 equal sides and 4 right angles. Square.

    B: 4 right angles but the sides are not all equal. Rectangle.

    C: 4 equal sides and no right angles. Rhombus.

    D: 4 sides with neither attribute. Other quadrilateral (a kite).

    8. Shared attributes

    Every square and every rectangle has 4 right angles.

    Every square and every rhombus has 4 equal sides.

    9. The square family

    A square has 4 right angles, so it is a rectangle. A square has 4 equal sides, so it is a rhombus.

    It meets the rule for both groups.

    10. Sort the shapes

    Rhombuses have 4 equal sides: A and C (the square counts).

    Rectangles have 4 right angles: A and B.

    Neither: D, E and F.

    Grade 3 Quadrilaterals Worksheet Answer Key: problems 11–15

    11. Is it a rhombus?

    A rhombus has 4 equal sides. All 4 sides are 7 in, so it is a rhombus.

    A square needs 4 right angles. This shape has none, so it is not a square.

    12. Rectangle clues

    Four right angles make it a rectangle.

    The sides are not all equal, because 9 is not 4. So it is not a square.

    13. Draw a quadrilateral

    Draw 4 straight sides that are all different lengths, with no right angles. One example is shown.

    WXYZ
    One possible answer: four unequal sides and no right angles.

    It has 4 sides. The sides are unequal and no corner is a right angle, so it fits none of the three groups.

    14. Four equal parts

    There are 4 equal parts, so each part is \(\frac{1}{4}\) of the rectangle.

    Area of one part: \(12 : 4 = 3\). Check: one strip covers 3 squares.

    The shaded part has an area of 3 square units.

    15. Thirds

    3 equal parts means each part is \(\frac{1}{3}\) of the whole.

    \(12 : 3 = 4\). Check: a strip is 2 wide and 2 tall, so it covers 4 squares.

    Each part has an area of 4 square units.

    Grade 3 Quadrilaterals Worksheet Answer Key: problems 16–20

    16. Eighths

    8 equal parts: each part is \(\frac{1}{8}\) of the square.

    \(16 : 8 = 2\). Each piece is 2 wide and 1 tall, which covers 2 squares.

    Each part has an area of 2 square units.

    17. Which are halves?

    A: both parts are 2 by 4, so each has 8 square units. Equal.

    B: the parts have 4 and 12 square units. Not equal.

    C: the diagonal makes two triangles of 8 square units each. Equal.

    D: the parts have 12 and 4 square units. Not equal.

    Halves: A and C. Each half is \(\frac{1}{2}\) of the square.

    AC
    Equal halves: squares A and C.

    18. Two ways to make fourths

    Way 1: cut down the middle and across the middle to make 4 small squares of 4 square units each.

    Way 2: draw both diagonals to make 4 triangles of 4 square units each.

    Way 1Way 2
    Each part is \(\frac{1}{4}\) of the square.

    19. Maya's garden

    Garden: \(8 \times 4 = 32\) square feet.

    One section: \(32 : 8 = 4\) square feet. Check: each section is 2 ft by 2 ft.

    Each section is \(\frac{1}{8}\) of the garden. Answers: 32 sq ft, 4 sq ft, \(\frac{1}{8}\).

    Eight sections of 4 square feet.

    20. Diego's brownies

    Pan: \(6 \times 4 = 24\) square inches.

    One piece: \(24 : 6 = 4\) square inches, which is \(\frac{1}{6}\) of the pan.

    Liam ate 2 pieces: \(2 \times 4 = 8\).

    One piece: 4 sq in. Liam ate 8 sq in.

    Grade 3 Quadrilaterals Worksheet Answer Key: problems 21–24

    21. Jamal's claim

    A square must have 4 right angles. Jamal’s shape has none, so Jamal is not correct.

    It has 4 equal sides, so it is a rhombus.

    22. Aisha's flag

    Flag: \(9 \times 6 = 54\) square inches.

    One stripe: \(54 : 3 = 18\) square inches. Check: each stripe is 9 in by 2 in, and \(9 \times 2 = 18\).

    Each stripe is \(\frac{1}{3}\) of the flag. Answers: 54 sq in, 18 sq in, \(\frac{1}{3}\).

    23. Priya's quilt

    Quilt: \(4 \times 4 = 16\) square feet.

    One triangle: \(16 : 4 = 4\) square feet, which is \(\frac{1}{4}\) of the quilt.

    Answers: 16 sq ft and 4 sq ft.

    24. Mei and Noah's cakes

    Each cake: \(5 \times 4 = 20\) square inches.

    Mei: \(20 : 5 = 4\) square inches per piece, \(\frac{1}{5}\) of the cake.

    Noah: \(20 : 4 = 5\) square inches per piece, \(\frac{1}{4}\) of the cake.

    \(5 – 4 = 1\). Noah’s pieces are bigger, by 1 square inch.

    How do you check the shape naming answers?

    Problem 3 gives 4 sides and 4 vertices. Next, problem 4 gives 4 right angles, and opposite sides match. After that, problem 5 gives a fourth side of 5 inches. Then problem 9 explains that a square is both a rectangle and a rhombus, so give credit for either reason. Also, problem 12 names a rectangle, not a square, because 9 and 4 differ.

    What are the equal part answers?

    Problem 14 gives \(\frac{1}{4}\) and 3 square units. Likewise, problem 15 gives \(\frac{1}{3}\) and 4 square units, and problem 16 gives \(\frac{1}{8}\) and 2 square units. For problem 18, accept any two cuts whose four parts have equal area, such as strips and a cross.

    How do you verify the story answers?

    Maya’s 32 square foot garden gives 4 square feet per section in problem 19. Then Diego’s 24 square inch pan gives 4 square inches per piece in problem 20. Jamal is not correct in problem 21, since the shape is a rhombus. Finally, Aisha’s flag gives stripes of 18 square inches, and Priya’s diagonal cuts give four triangles of 4 square feet each.

    What should students redo after the key?

    Pick the two problems you missed most and redraw the shapes with tick marks. Next, rewrite your reason in one sentence. After that, partition a fresh square into fourths and prove the areas match. Then attempt the printable test.

    Next step after this grade 3 quadrilaterals worksheet answer key: Quadrilaterals and Partitioning Shapes test

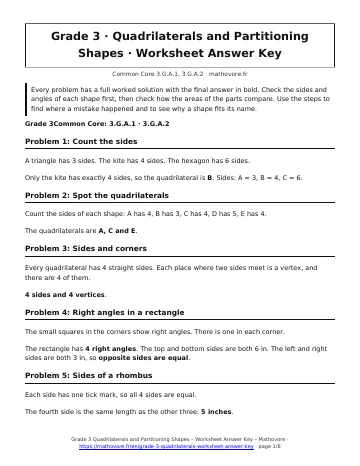

    Printable PDF · Worksheet Answer Key

    Grade 3 Quadrilaterals and Partitioning Shapes worksheet answer key
