Geometry Parabola Tangents Worksheet Answer Key – Focus and Circles

    Key takeaway: This geometry parabola tangents worksheet answer key shows the distance comparisons, the algebra and the right triangles for all 24 problems. Check each result against the stated definition, because a parabola answer must pass the focus-and-directrix test.

    This answer key shows a full worked solution for each problem, including the distance comparisons, the algebra for every equation and the right triangles for every tangent. Check each answer against the stated check value.

    GeometryCommon Core: G-GPE.A.2 · G-C.A.4

    Geometry Parabola Tangents Worksheet Answer Key: problems 1–5

    1. Checking a point against the definition

    (a) Distance to the focus: \(\sqrt{4^{2}+(4-1)^{2}}=\sqrt{25}=5\). Distance to the directrix: \(4-(-1)=5\). The distances are equal, so A is on the parabola.

    (b) Distance to the focus: \(\sqrt{6^{2}+7^{2}}=\sqrt{85}\approx 9.22\). Distance to the directrix: \(8+1=9\). They differ, so B is not on it. Answer: A is on the parabola; B is not

    2. Solving for a missing ordinate

    The distance to the directrix is \(8+3=11\). The distance to the focus is \(\sqrt{(8-3)^{2}+y^{2}}=\sqrt{25+y^{2}}\).

    Set \(\sqrt{25+y^{2}}=11\): \(25+y^{2}=121\), so \(y^{2}=96\) and \(y=\pm 4\sqrt{6}\approx\pm 9.80\). Check with \(y^{2}=12x=96\). Answer: \(y\approx 9.80\) or \(y\approx -9.80\)

    3. Deriving an equation from the definition

    For a point \((x,y)\): \(\sqrt{x^{2}+(y-4)^{2}}=|y+4|\).

    Square both sides: \(x^{2}+y^{2}-8y+16=y^{2}+8y+16\). Subtract \(y^{2}+16\) from both sides and add \(8y\): \(x^{2}=16y\). Answer: \(x^{2}=16y\)

    4. A parabola that opens downward

    The vertex is the midpoint \((0,0)\), and the focus is below it, so \(p=-2\). Then \(x^{2}=4py=4(-2)y\).

    Check with the point \((4,-2)\): distance to the focus \(4\), distance to the directrix \(|-2-2|=4\), and \(4^{2}=16=-8(-2)\). Answer: \(x^{2}=-8y\)

    5. A parabola that opens to the right

    Set \(\sqrt{(x-3)^{2}+y^{2}}=|x+3|\) and square: \(x^{2}-6x+9+y^{2}=x^{2}+6x+9\). Then \(y^{2}=12x\), which matches \(y^{2}=4px\) with \(p=3\). Answer: \(y^{2}=12x\)

    Geometry Parabola Tangents Worksheet Answer Key: problems 6–10

    6. Focus and directrix from an equation

    Compare with \(x^{2}=4py\): \(4p=20\), so \(p=5\). The focus is \((0,p)=(0,5)\) and the directrix is \(y=-p=-5\). Answer: focus \((0,5)\); directrix \(y=-5\)

    7. Rewriting a quadratic function

    Multiply by 8: \(x^{2}=8y\). Then \(4p=8\) and \(p=2\). The focus is \((0,2)\) and the directrix is \(y=-2\). Answer: focus \((0,2)\); directrix \(y=-2\)

    8. A sideways parabola

    Compare with \(y^{2}=4px\): \(4p=-16\), so \(p=-4\). The focus is \((p,0)=(-4,0)\) and the directrix is \(x=-p=4\). Since \(p < 0\), it opens to the left. Answer: focus \((-4,0)\); directrix \(x=4\); opens left

    9. Vertex away from the origin

    The vertex is the midpoint of \((3,6)\) and the point \((3,2)\) on the directrix: \((3,4)\). The focus is 2 above it, so \(p=2\).

    Equation: \((x-3)^{2}=4(2)(y-4)=8(y-4)\).

    Check \((7,6)\): \((7-3)^{2}=16\) and \(8(6-4)=16\). Distances: to the focus \(4\), to the directrix \(6-2=4\). Answer: vertex \((3,4)\), \(p=2\), \((x-3)^{2}=8(y-4)\)

    -4-2246810246844F(3, 6)V(3, 4)y = 2
    Vertex V(3, 4), p = 2.

    10. Reading a shifted equation

    Compare with \((x-h)^{2}=4p(y-k)\): \(h=-2\), \(k=1\), \(4p=12\), \(p=3\).

    Vertex \((-2,1)\); focus \((h,k+p)=(-2,4)\); directrix \(y=k-p=-2\). Answer: vertex \((-2,1)\); focus \((-2,4)\); directrix \(y=-2\)

    Geometry Parabola Tangents Worksheet Answer Key: problems 11–15

    11. Focus and a vertical directrix

    The vertex is halfway between \(x=-1\) and \(x=5\) at \(y=3\): \((2,3)\). The focus is 3 units to the left of the vertex, so \(p=-3\).

    \((y-3)^{2}=4(-3)(x-2)=-12(x-2)\). Check the point \((-1,9)\): \((9-3)^{2}=36=-12(-3)\), and the distances to the focus and to \(x=5\) are both 6. Answer: \((y-3)^{2}=-12(x-2)\)

    12. Completing the square

    Isolate the x-terms: \(x^{2}-6x=8y-1\). Add 9 to both sides: \((x-3)^{2}=8y+8=8(y+1)\).

    So \(h=3\), \(k=-1\), \(p=2\). Vertex \((3,-1)\); focus \((3,1)\); directrix \(y=-3\). Answer: \((x-3)^{2}=8(y+1)\); vertex \((3,-1)\); focus \((3,1)\); directrix \(y=-3\)

    13. Tangent perpendicular to a radius

    The tangent is perpendicular to the radius, so triangle OTP has a right angle at T: \(OP^{2}=5^{2}+12^{2}=169\), so \(OP=13\). Answer: \(OP=13\)

    14. Length of a tangent segment

    The tangent segment is a leg of a right triangle with hypotenuse \(OP=17\) and other leg 8: \(PT=\sqrt{17^{2}-8^{2}}=\sqrt{225}=15\). Answer: 15 units

    15. Finding the radius

    \(r^{2}+24^{2}=25^{2}\), so \(r^{2}=625-576=49\) and \(r=7\). Answer: 7

    Geometry Parabola Tangents Worksheet Answer Key: problems 16–20

    16. Equal tangent segments

    Tangent segments from one point are congruent: \(3x+4=5x-6\). Then \(10=2x\), so \(x=5\).

    \(PA=3(5)+4=19\) and \(PB=5(5)-6=19\). Answer: \(x=5\); \(PA=19\)

    17. Angles around two tangents

    The radii \(OA\) and \(OB\) are perpendicular to the tangents, so \(\angle OAP=\angle OBP=90^{\circ}\). The angles of quadrilateral OAPB add to \(360^{\circ}\):

    \(m\angle APB=360^{\circ}-90^{\circ}-90^{\circ}-110^{\circ}=70^{\circ}\). Answer: \(70^{\circ}\)

    OPAB110°70°
    90 + 90 + 110 + 70 = 360.

    18. Is the line tangent?

    A line is tangent at T exactly when \(OT\perp PT\), so test the Pythagorean relationship.

    (a) \(9^{2}+12^{2}=81+144=225=15^{2}\): right angle at T, so tangent.

    (b) \(7^{2}+24^{2}=49+576=625\), but \(26^{2}=676\): no right angle, so not tangent. Answer: (a) tangent; (b) not tangent

    19. Tangent line in the coordinate plane

    The radius from \(O(0,0)\) to \(T\) has slope \(\frac{4}{3}\), so the tangent has slope \(-\frac{3}{4}\).

    \(y-4=-\frac{3}{4}(x-3)\), so \(4y-16=-3x+9\) and \(3x+4y=25\).

    At \(y=0\): \(x=\frac{25}{3}\). Answer: \(3x+4y=25\); crosses the x-axis at \((\frac{25}{3},0)\)

    20. Why the midpoint circle works

    (a) \(MO=\frac{1}{2}\cdot 10=5\).

    (b) \(OP\) is a diameter of the dashed circle and A is on that circle, so \(\angle OAP\) is inscribed in a semicircle and equals \(90^{\circ}\). Then \(PA\perp OA\), so PA is tangent.

    (c) \(PA=\sqrt{10^{2}-6^{2}}=\sqrt{64}=8\). Answer: \(MO=5\); right angle by the semicircle; \(PA=8\)

    MOPAB6810
    Completed construction: 6, 8, 10.

    Geometry Parabola Tangents Worksheet Answer Key: problems 21–24

    21. Cable to a water tank

    The cable is a tangent segment, perpendicular to the radius at the touching point: \(\sqrt{20^{2}-12^{2}}=\sqrt{256}=16\). Answer: 16 ft

    22. Satellite dish

    (a) \(p=1.5\), so \(x^{2}=4(1.5)y=6y\).

    (b) At the rim \(x=4\): \(y=\frac{16}{6}=\frac{8}{3}\approx 2.67\) ft.

    (c) The rim is \(\frac{8}{3}+\frac{3}{2}=\frac{25}{6}\) ft from the directrix, hence from the focus: \(\sqrt{16+(\frac{8}{3}-\frac{3}{2})^{2}}=\sqrt{\frac{625}{36}}=\frac{25}{6}\approx 4.17\) ft. Answer: \(x^{2}=6y\); about 2.67 ft; about 4.17 ft

    23. Headlight reflector

    (a) \(p=2.5\), so \(x^{2}=10y\).

    (b) At \(x=5\): \(y=\frac{25}{10}=2.5\) in.

    (c) The rim is at \((5,2.5)\) and the bulb at \((0,2.5)\), 5 in. apart. Check: the rim is \(2.5+2.5=5\) in. from the directrix. Answer: \(x^{2}=10y\); 2.5 in.; 5 in.

    24. Tangents from a point on the axis

    (a) \(OP=5\), \(r=4\): \(PT=\sqrt{25-16}=3\).

    (b) For a point \(T(x,y)\) of tangency, \(OT\perp PT\): \(x(x-5)+y^{2}=0\). With \(x^{2}+y^{2}=16\) this gives \(16-5x=0\), so \(x=3.2\) and \(y^{2}=16-10.24=5.76\), \(y=\pm 2.4\). Check: \(\sqrt{(5-3.2)^{2}+2.4^{2}}=3\).

    (c) Slope of \(PT\): \(\frac{2.4-0}{3.2-5}=-\frac{4}{3}\). Then \(y=-\frac{4}{3}(x-5)\), or \(4x+3y=20\). Check \(T\): \(12.8+7.2=20\). Answer: 3; \((3.2,\ 2.4)\) and \((3.2,\ -2.4)\); \(4x+3y=20\)

    -6-4-22468-6-4-2246OP(5, 0)T(3.2, 2.4)S
    Upper tangent: 4x + 3y = 20.

    How do you read the parabola answer key?

    Number 3 gives \(x^{2}=16y\), and number 4 gives \(x^{2}=-8y\). Number 5 gives \(y^{2}=12x\). For problem 2, the y-coordinate is \(\pm 4\sqrt{6}\), since \(y^{2}=12\cdot 8=96\). If you wrote only the positive value, you missed the symmetric point.

    Which answers need extra care?

    Problem 10 gives vertex \((-2,1)\), focus \((-2,4)\) and directrix \(y=-2\). Next, 12 rewrites to \((x-3)^{2}=8(y+1)\), so the vertex is \((3,-1)\) and the focus is \((3,1)\). Meanwhile, 11 opens left, with \((y-3)^{2}=-12(x-2)\).

    What about the tangent answers?

    Tangent lengths follow from right triangles. The result 15 comes from \(\sqrt{17^{2}-8^{2}}\), and \(x=5\) in problem 16 gives both segments 19. In problem 24, the tangent from \(P(5,0)\) to \(x^{2}+y^{2}=16\) has length 3.

    What if your equation fails the check?

    Recheck the sign of p and the position of the vertex. Then recompute both distances for one point. After that, rewrite the equation from the corrected values.

    Next step after this geometry parabola tangents worksheet answer key: Parabolas from Focus and Directrix, and Tangent Lines to a Circle test

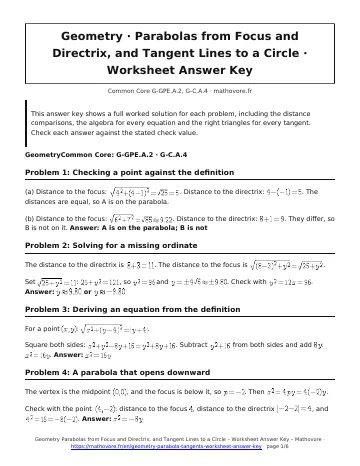

    Printable PDF · Worksheet Answer Key

    Geometry Parabolas from Focus and Directrix, and Tangent Lines to a Circle worksheet answer key

    • 📄 US Letter
    • 💾 170 KB
    • 🖨️ Black and white friendly
    Download the PDF
