Geometry Foundations Lesson: Points, Lines, Planes, Segments and Angles

    Key takeaway: This geometry foundations lesson starts from three undefined terms: point, line and plane. Every other figure is defined from them, so a segment is bounded by a pair of endpoints, a ray starts at a single endpoint, and an angle joins two rays at a vertex. You will use the Segment Addition and Angle Addition Postulates in short algebra problems. The page follows G-CO.A.1 and keeps each definition exact.

    Geometry builds on three undefined terms: point, line and plane. A segment has two endpoints, a ray has one, and an angle is two rays with a common vertex. The Segment Addition and Angle Addition Postulates let you add parts to find a whole, and angle pairs give equations to solve.

    GeometryCommon Core: G-CO.A.1

    Geometry Foundations Lesson: key facts

    • Point, line and plane are undefined terms; all other figures are defined from them.
    • Segment Addition Postulate: if B is between A and C, then AB + BC = AC.
    • Angle Addition Postulate: if D is inside angle ABC, the two smaller angles add to angle ABC.
    • Complementary angles add to 90 degrees; supplementary angles and linear pairs add to 180 degrees.
    • Vertical angles are congruent.

    What are the undefined terms of geometry?

    Geometry starts with three ideas that are described but never defined: point, line and plane. A point names a location and has no size. A line extends forever in both directions and has no width. A plane is a flat surface that extends forever in every direction. Every other figure is defined with these three words.

    Plane MABCline l
    A plane contains infinitely many points and lines; point C lies in plane M but not on line l.

    How are segments, rays, angles, circles and perpendicular lines defined?

    Precise definitions

    Line segment: two endpoints and all points of the line between them. Ray: a point on a line (the endpoint) and all points extending in one direction.

    Angle: two rays with the same endpoint, called the vertex. Circle: the set of all points in a plane that are the same distance from a given point, the center.

    Parallel lines: lines in the same plane that never intersect. Perpendicular lines: lines that intersect to form a right angle.

    ABline ABABsegment ABABray AB
    A line has no endpoints, a segment has two, and a ray has one.

    What are the Segment Addition and Angle Addition Postulates?

    If point B is between A and C, then \(AB+BC=AC\). If ray BD lies inside \(\angle ABC\), then \(m\angle ABD+m\angle DBC=m\angle ABC\). A midpoint splits a segment into two congruent segments. A bisector splits a segment or an angle into two congruent parts.

    ABCAB = 8BC = 5AC = 13
    Segment Addition Postulate: 8 + 5 = 13.
    ADC38°47°B
    Angle Addition Postulate: 38° + 47° = 85°.

    Which angle pairs can you name and measure?

    Pair Definition Measures
    Complementary two angles whose measures add to \(90^{\circ}\) \(m\angle 1+m\angle 2=90^{\circ}\)
    Supplementary two angles whose measures add to \(180^{\circ}\) \(m\angle 1+m\angle 2=180^{\circ}\)
    Linear pair adjacent angles whose outer sides are opposite rays supplementary
    Vertical angles opposite angles formed by two intersecting lines congruent
    1234
    Angles 1 and 3 are vertical; angles 1 and 2 form a linear pair.

    How do you find a missing angle with algebra?

    1. Name the relationship (linear pair, vertical, complementary or an addition postulate).
    2. Write the equation that relationship gives.
    3. Solve for the variable.
    4. Substitute to find each measure and check.

    Worked example. Angles 1 and 2 form a linear pair with \(m\angle 1=(2x+30)^{\circ}\) and \(m\angle 2=(3x+10)^{\circ}\). Then \(5x+40=180\), so \(x=28\). Angle 1 measures \(86^{\circ}\), angle 2 measures \(94^{\circ}\), and \(86+94=180\).

    Points, Lines, Planes, Segments and Angles: frequently asked questions

    What is the difference between a line, a segment and a ray?

    A line extends forever in both directions, a ray has one endpoint and extends forever in one direction, and a segment has two endpoints and a fixed length. Only a segment can be measured.

    How do you use the Segment Addition Postulate?

    When B is between A and C, add the two smaller parts to get the whole: \(AB+BC=AC\). If the whole and one part are known, subtract to find the other part.

    What is the difference between complementary and supplementary angles?

    Complementary angles add to \(90^{\circ}\) and supplementary angles add to \(180^{\circ}\). Neither pair has to be adjacent. A linear pair is a supplementary pair that is also adjacent.

    Are vertical angles always congruent?

    Yes. When two lines intersect, each pair of opposite angles has the same measure. Both angles are supplementary to the same neighbor, which is the idea behind the Vertical Angles Theorem.

    What is the difference between a midpoint and a bisector?

    A midpoint is a single point at the center of a segment. A bisector is a point, line, ray or segment that cuts a segment or an angle into two congruent parts.

    How does the Segment Addition Postulate work?

    If B lies between A and C, then \(AB+BC=AC\). Suppose \(AB=3x+2\), \(BC=2x+7\) and \(AC=34\). Then \(5x+9=34\), so \(x=5\), and each part is 17. Because the two parts are equal here, B is also the midpoint.

    What do angle pairs tell you?

    Complementary angles add to \(90^{\circ}\), and supplementary angles add to \(180^{\circ}\). A linear pair is supplementary. Vertical angles are equal, so \(7x-12=4x+18\) gives \(x=10\) and each angle is \(58^{\circ}\). When an angle is twice its supplement partner, the larger one is \(120^{\circ}\).

    What mistakes occur in a geometry foundations lesson?

    Students often write \(AB=BC\) just because B looks central. Equal parts need a midpoint statement or markings. Another slip is mixing complement and supplement: the complement of \(63^{\circ}\) is \(27^{\circ}\), and its supplement is \(117^{\circ}\).

    Why are definitions exact?

    A circle collects every point of a plane that sits a fixed distance from its center. Perpendicular lines meet in four right angles. These precise sentences become reasons in later proofs.

    What should you try next?

    Draw a segment with a midpoint and label each part with an expression. Then solve for x and verify by substitution. After that, open the worksheet and write the postulate name beside each equation.

    Next step after this geometry foundations lesson: Points, Lines, Planes, Segments and Angles worksheet

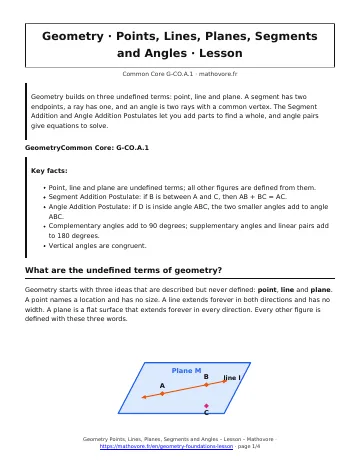

    Printable PDF · Lesson
