Key takeaway: This geometry triangle theorems worksheet has 26 problems on the angle sum, exterior angles, isosceles triangles, midsegments, medians and triangle centers. Students solve for angles with algebra, find lengths from midpoints, and locate centers on a grid. Also, the last problems place a fountain, cut a circle from plywood and balance a cardboard triangle. As a result, you practice the centroid, circumcenter and incenter in real settings.
These 26 problems cover Common Core standards G-CO.C.10 and G-C.A.3: the Triangle Angle Sum and Exterior Angle theorems, the Isosceles Triangle Theorem, midsegments, medians and the centroid, and the circumcenter, incenter, and orthocenter with their circles.
The first problems use angle facts and algebra. Later ones use coordinates and circles, and the last six are word problems and multi-step tasks, so show every step.
Geometry Triangle Theorems Worksheet: problems 1–5
1. Find the third angle
In \(\triangle ABC\), \(m\angle A=52^{\circ}\) and \(m\angle B=67^{\circ}\). Find \(m\angle C\).
2. Acute angles of a right triangle
In right triangle ABC, \(m\angle C=90^{\circ}\) and \(m\angle A=35^{\circ}\). Find \(m\angle B\).
3. Base angles of an isosceles triangle
Triangle ABC is isosceles with \(\overline{AB}\cong\overline{AC}\) and a vertex angle of \(m\angle A=40^{\circ}\). Find the measure of each base angle.
4. Angle sum with variables
The angles of a triangle measure \((x+10)^{\circ}\), \((2x-5)^{\circ}\), and \((3x+7)^{\circ}\). Find \(x\) and all three angle measures.
5. Use the exterior angle
In the figure, side \(\overline{BC}\) is extended past C. Find the measure of the exterior angle at C.
Geometry Triangle Theorems Worksheet: problems 6–10
6. Missing remote angle
An exterior angle of a triangle measures \(128^{\circ}\). One remote interior angle measures \(75^{\circ}\). Find the other remote interior angle.
7. Exterior angle with variables
An exterior angle measures \((6x-4)^{\circ}\). The remote interior angles measure \((2x+10)^{\circ}\) and \((3x+6)^{\circ}\). Find \(x\) and the exterior angle.
8. Isosceles triangle with variables
In isosceles triangle ABC, \(\overline{AB}\cong\overline{AC}\), \(m\angle B=(3x+4)^{\circ}\), and \(m\angle C=(5x-16)^{\circ}\). Find \(x\), the base angles, and \(m\angle A\).
9. Equal angles, equal sides
In \(\triangle PQR\), \(m\angle P=m\angle Q=58^{\circ}\), \(PR=(2x+1)\text{ cm}\), and \(QR=(4x-13)\text{ cm}\). Find \(x\), \(PR\), and \(m\angle R\).
10. Midsegment length
In \(\triangle ABC\), D and E are the midpoints of \(\overline{AB}\) and \(\overline{AC}\), and \(BC=26\). Find \(DE\).
Geometry Triangle Theorems Worksheet: problems 11–15
11. Midsegment with variables
In \(\triangle ABC\), \(\overline{DE}\) is the midsegment parallel to \(\overline{BC}\). \(DE=(4x-3)\text{ in}\) and \(BC=(7x+2)\text{ in}\). Find \(x\), \(DE\), and \(BC\).
12. Midsegment on a grid
Triangle ABC has \(A(2,8)\), \(B(-2,0)\), and \(C(10,0)\). D is the midpoint of \(\overline{AB}\) and E is the midpoint of \(\overline{AC}\). Find the coordinates of D and E, then show that \(\overline{DE}\parallel\overline{BC}\) and \(DE=\frac{1}{2}BC\).
13. Segments of a median
The medians \(\overline{AD}\), \(\overline{BE}\), and \(\overline{CF}\) of \(\triangle ABC\) meet at the centroid G. If \(AD=21\), find \(AG\) and \(GD\).
14. Centroid with variables
G is the centroid of \(\triangle ABC\) and D is the midpoint of \(\overline{AC}\), so \(\overline{BD}\) is a median. \(BG=(5x-1)\text{ in}\) and \(GD=(2x+1)\text{ in}\). Find \(x\), \(BG\), and \(BD\).
15. Centroid on a grid
Find the centroid of the triangle with vertices \(A(1,2)\), \(B(7,2)\), and \(C(4,8)\).
Geometry Triangle Theorems Worksheet: problems 16–20
16. Name the center
Name the point of concurrency described: (a) the intersection of the three medians; (b) the intersection of the perpendicular bisectors of the sides; (c) the intersection of the angle bisectors; (d) the intersection of the lines containing the altitudes.
17. Circumcenter of a right triangle
Right triangle ABC has \(A(0,0)\), \(B(12,0)\), and \(C(0,5)\). Find the circumcenter and the radius of the circumscribed circle.
18. Circumcenter by perpendicular bisectors
Triangle ABC has \(A(0,0)\), \(B(6,0)\), and \(C(2,6)\). Find the circumcenter by writing the perpendicular bisectors of \(\overline{AB}\) and \(\overline{AC}\).
19. Incenter and inscribed circle
Right triangle ABC has legs of 5 ft and 12 ft and a hypotenuse of 13 ft. The incenter I is the center of the inscribed circle. (a) Find the area and the semiperimeter \(s\). (b) Use \(\text{area}=r\cdot s\) to find the radius \(r\) of the inscribed circle. (c) How far is I from each side?
20. Angles at the incenter
In \(\triangle ABC\), \(m\angle A=50^{\circ}\) and \(m\angle B=70^{\circ}\). I is the incenter. Find \(m\angle BAI\), \(m\angle ABI\), and \(m\angle AIB\).
Geometry Triangle Theorems Worksheet: problems 21–25
21. Where to put the fountain
A park designer puts a fountain exactly the same distance from three trees. On a grid in yards, the Oak is at \((0,0)\), the Elm is at \((12,0)\), and the Pine is at \((4,8)\). Find the fountain’s location and its distance from each tree to the nearest tenth of a yard.
22. Largest circle in a triangle
Diego cuts the largest possible circle from a triangular piece of plywood with sides of 9 ft, 12 ft, and 15 ft. What is the diameter of the circle?
23. Balance point of a triangle
Priya cuts a triangle from uniform cardboard with vertices at \((0,0)\), \((12,0)\), and \((3,9)\) (inches). She wants to balance it on a pencil tip. Where should the tip touch the triangle?
24. Roof gable angles
The end of a roof is an isosceles triangle ABC with \(\overline{AC}\cong\overline{CB}\) and a peak angle of \(m\angle C=110^{\circ}\). The base \(\overline{AB}\) is extended past B. (a) Find the base angles. (b) Find the exterior angle at B, and check it with the Exterior Angle Theorem.
25. Midsegment triangle perimeter
Triangle ABC has sides \(AB=14\text{ in}\), \(BC=22\text{ in}\), and \(CA=18\text{ in}\). D, E, and F are the midpoints of \(\overline{AB}\), \(\overline{BC}\), and \(\overline{CA}\). Find the three side lengths and the perimeter of \(\triangle DEF\), and compare it with the perimeter of \(\triangle ABC\).
Geometry Triangle Theorems Worksheet: problems 26–26
26. Orthocenter on a grid
Find the orthocenter of the triangle with \(A(0,0)\), \(B(8,0)\), and \(C(2,6)\). Check your answer with the third altitude.
What skills does the geometry triangle theorems worksheet build?
Problems 1 to 4 use the angle sum. For example, problem 1 leaves 61 degrees, and problem 4 solves \(6x+12=180\), so x is 28. Then problems 5 to 7 use the exterior angle, so add the remote angles instead of subtracting from 180. Because problem 6 gives 128 and 75, the missing angle is 53. Meanwhile, problems 8 and 9 use equal sides and equal angles. Therefore, set the base angles equal before you solve.
How do the midsegment and median problems work?
Problem 10 halves 26 to get 13. Likewise, problem 12 places the midpoints at \((0,4)\) and \((6,4)\), so the midsegment is 6 and the base is 12. Next, problems 13 and 14 split a median in a 2 to 1 ratio, so the long piece belongs to the vertex. However, problem 15 uses coordinates, and the centroid of \((1,2)\), \((7,2)\) and \((4,8)\) is \((4,4)\). In addition, problem 25 halves a perimeter of 54 to find 27.
Which center problems need extra care?
Problem 17 places the circumcenter of a right triangle at the hypotenuse midpoint, \((6,2.5)\), with radius 6.5. Then problem 19 gives an inradius of 2 for the 5-12-13 triangle. Because \(r=\frac{a+b-c}{2}\) holds for right triangles, the arithmetic is short. Meanwhile, problem 26 finds the orthocenter at \((2,2)\) from the lines \(x=2\) and \(y=x\). Finally, problem 22 cuts a circle of diameter 6 feet from a 9-12-15 board.
How can you verify your centers?
Plot the triangle on graph paper and mark your answer. Then check the property of that center, such as equal distance to the vertices. Also, compare the position with the shape, since a right triangle puts two centers on its sides. After that, redo problem 18 with perpendicular bisectors.

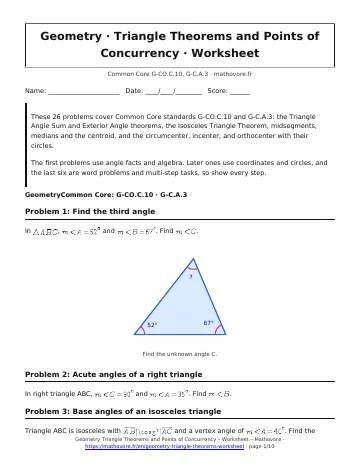

Printable PDF · Worksheet
Geometry Triangle Theorems and Points of Concurrency worksheet
