Geometry Circles, Angles and Arcs Worksheet with Answers – PDF

    Key takeaway: This geometry circles angles arcs worksheet has 24 problems on circle theorems for G-C.A.1 and G-C.A.2. You will compare similar circles, find angles from arcs, use tangents and chords, and solve with algebraic expressions for angles. The last problems use a Ferris wheel, a pizza, plaza lights and a pond path.

    These 24 problems practice circle theorems for Geometry, aligned to G-C.A.1 and G-C.A.2. They start with similar circles, central angles and inscribed angles, then move to semicircles, tangents and chords.

    Later problems use inscribed quadrilaterals and algebra to find unknown angles and arcs. The last six are word problems and multi-step tasks set in plazas, ponds and amusement parks.

    GeometryCommon Core: G-C.A.1 · G-C.A.2

    Geometry Circles Angles Arcs Worksheet: problems 1–5

    1. Similar circles

    Circle A has radius 4 cm and circle B has radius 10 cm. (a) Describe a translation and a dilation that map circle A onto circle B and give the scale factor. (b) Find the ratio of the circumference of B to the circumference of A.

    r = 4r = 10circle Acircle B
    Circle A has radius 4 and circle B has radius 10.

    2. Ratio of circumferences

    Circle P has radius 3 inches and circle Q has radius 12 inches. Find both circumferences in terms of \(\pi\) and the ratio of the circumference of Q to that of P.

    3. Central angle and arc

    In circle \(O\), central angle \(\angle AOB\) measures \(72^{\circ}\). Find the measure of minor arc \(AB\) and of major arc \(AB\).

    4. Inscribed angle from an arc

    Inscribed angle \(\angle ACB\) intercepts arc \(AB\) that measures \(110^{\circ}\). Find \(m\angle ACB\).

    5. Arc length from an inscribed angle

    In a circle of radius 10 cm, inscribed angle \(\angle PQR\) measures \(27^{\circ}\). Find the measure of arc \(PR\), the measure of the other arc \(PR\), and the length of arc \(PR\) in terms of \(\pi\).

    Geometry Circles Angles Arcs Worksheet: problems 6–10

    6. Inscribed angle algebra

    Inscribed angle \(\angle ABC\) measures \((3x+5)^{\circ}\) and it intercepts an arc of \((8x-10)^{\circ}\). Find \(x\), the angle, and the arc.

    7. Triangle in a semicircle

    Segment \(\overline{AB}\) is a diameter and \(C\) is on the circle. If \(\angle A=34^{\circ}\), find \(\angle ACB\) and \(\angle B\).

    ABC34°
    AB is a diameter.

    8. Semicircle algebra

    Segment \(\overline{AB}\) is a diameter of a circle and \(C\) is another point on the circle. \(m\angle CAB=(2x+4)^{\circ}\) and \(m\angle CBA=(3x+6)^{\circ}\). Find \(x\) and both angles.

    9. Angles on the same arc

    Arc \(AB\) measures \(82^{\circ}\). Points \(C\) and \(D\) lie on the major arc. Find \(m\angle ACB\) and \(m\angle ADB\).

    ABCD82°??
    Arc AB measures 82°.

    10. Radius and tangent

    Line \(AP\) is tangent to the circle at \(A\). The radius \(OA\) is 6 and \(AP\) is 8. Find \(OP\).

    OAP68OP = ?
    Line AP is tangent to the circle at A.

    Geometry Circles Angles Arcs Worksheet: problems 11–15

    11. Angle at a tangent

    Line \(\ell\) is tangent to a circle with center \(O\) at point \(A\), and \(P\) is another point on \(\ell\). If \(m\angle AOP=52^{\circ}\), find \(m\angle APO\).

    12. Two tangents

    Tangent segments \(PA\) and \(PB\) touch a circle with center \(O\) at \(A\) and \(B\). Minor arc \(AB\) measures \(130^{\circ}\). Find \(m\angle AOB\) and \(m\angle APB\).

    ABP130°O
    Minor arc AB measures 130°.

    13. Equal tangent segments

    From point \(P\) outside a circle with center \(O\), tangent segments \(PA\) and \(PB\) are drawn. The radius is 5 and \(OP=13\). Find \(PA\) and \(PB\).

    14. Distance to a chord

    A chord of length 24 is drawn in a circle of radius 13. Find the distance from the center to the chord.

    OABM1324d = ?
    A chord and the perpendicular from the center.

    15. Chord from a distance

    A chord is 8 units from the center of a circle with radius 17. Find the length of the chord.

    Geometry Circles Angles Arcs Worksheet: problems 16–20

    16. Equal chords

    Chords \(AB\) and \(CD\) of the same circle have equal length. Arc \(AB\) measures \((4x+6)^{\circ}\) and arc \(CD\) measures \((6x-14)^{\circ}\). Find \(x\) and the arc measures.

    17. Inscribed quadrilateral

    Quadrilateral \(ABCD\) is inscribed in a circle. \(m\angle A=105^{\circ}\) and \(m\angle B=82^{\circ}\). Find \(m\angle C\) and \(m\angle D\).

    ABCD105°82°
    Quadrilateral ABCD is inscribed in a circle.

    18. Inscribed quadrilateral algebra

    In an inscribed quadrilateral \(ABCD\), \(m\angle A=(4x+10)^{\circ}\) and \(m\angle C=(2x+20)^{\circ}\). Find \(x\) and both angles.

    19. Ferris wheel seats

    Aisha rides a Ferris wheel with 12 seats spaced equally around the rim. (a) Find the central angle between two neighboring seats. (b) Seats \(P\) and \(Q\) are 3 seats apart along the shorter way around. Find the central angle \(\angle POQ\). (c) Aisha sits in a seat on the longer arc between \(P\) and \(Q\). Find the angle between her lines of sight to \(P\) and \(Q\).

    20. Pizza cut

    Jamal cuts a circular pizza with a 20-inch diameter along a straight chord that is 12 inches long. How far is the cut from the center of the pizza?

    Geometry Circles Angles Arcs Worksheet: problems 21–24

    21. Plaza lights

    Light poles \(A\) and \(B\) stand at opposite ends of a diameter of a circular plaza that is 80 feet across. Liam stands at point \(L\) on the edge, 48 feet from pole \(A\). Find \(m\angle ALB\) and the distance from Liam to pole \(B\).

    ABL80 ft48 ft
    Light poles A and B stand at the ends of a diameter.

    22. Pond path

    A straight path touches a circular pond at point \(T\). The pond has radius 30 yards and its center is \(O\). Mei stands at \(P\) on the path, 40 yards from \(T\). Find \(OP\) and the shortest distance from Mei to the water.

    OTP30 yd40 yd
    A straight path touches the pond at T.

    23. Central and inscribed algebra

    Central angle \(\angle AOB\) and inscribed angle \(\angle ACB\) intercept the same arc. \(m\angle AOB=(12x-20)^{\circ}\) and \(m\angle ACB=(5x-5)^{\circ}\). Find \(x\) and both angles.

    24. Tangents and arcs algebra

    Tangent segments from \(P\) touch a circle at \(A\) and \(B\). \(m\angle P=(4x-2)^{\circ}\) and minor arc \(AB\) measures \((6x+2)^{\circ}\). Find \(x\), the angle, and the arc.

    Circles: Chords, Arcs and Inscribed Angles: Geometry worksheet answer key

    What skills does the geometry circles angles arcs worksheet build?

    Problems 1 and 2 show that circles are similar, with radii of 4 and 10, then 3 and 12. Next, problems 3 to 6 link arcs to angles, including \((3x+5)^{\circ}\) against an arc of \((8x-10)^{\circ}\). Problem 7 puts a triangle in a semicircle with one angle of 34 degrees.

    How do the tangent and chord problems work?

    In problem 10, the radius is 6 and the tangent is 8, so the center is 10 from the outside point. Problem 14 puts a 24-unit chord in a circle of radius 13. Because half the chord is 12, the distance is 5. Meanwhile, problem 15 reverses it: a chord 8 units from the center of a radius-17 circle is 30 long.

    What do the applied problems add?

    The Ferris wheel has 12 seats, so neighbors are 30 degrees apart. The pizza chord is 12 inches in a 20-inch circle, so it lies 8 inches from the center.

    • Mark the intercepted arc first.
    • Then choose the theorem.
    • Finally, check that angles add to the right total.

    How can you check your answers?

    Test each angle against a rough picture. An inscribed angle should look smaller than its central partner. Then redo problem 17 with a different pair of angles and confirm that opposite angles add to 180.

    Next step after this geometry circles angles arcs worksheet: Circles: Chords, Arcs and Inscribed Angles worksheet answer key

    Printable PDF · Worksheet

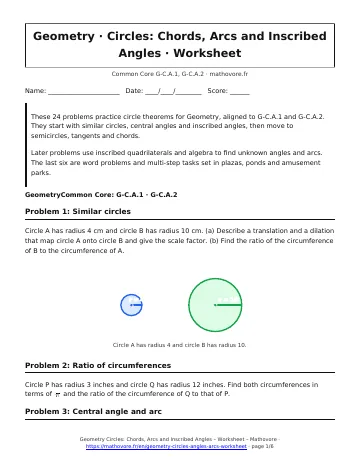

    Geometry Circles: Chords, Arcs and Inscribed Angles worksheet

    • 📄 US Letter
    • 💾 103 KB
    • 🖨️ Black and white friendly
    Download the PDF
