Geometry Circles, Angles and Arcs Test – Nine Questions, PDF

    Key takeaway: This geometry circles angles arcs test has nine questions on circle theorems. Students find central and inscribed angles, use a tangent and radius, measure a chord’s distance, and solve an inscribed quadrilateral with algebra. The last question places two skaters at opposite ends of a 60-foot rink.

    This 45-minute test covers circles for Geometry (G-C.A.1 and G-C.A.2). It has nine questions worth 20 points. Show every calculation, give exact values, and give a reason for each angle you find using a circle theorem.

    Test information
    • Grade: Geometry
    • Chapter: Circles: Chords, Arcs and Inscribed Angles
    • Common Core: G-C.A.1, G-C.A.2
    • Time: 45 minutes
    • Total: 20 points (Question 1: 2 pts; Question 2: 2 pts; Question 3: 2 pts; Question 4: 2 pts; Question 5: 3 pts; Question 6: 2 pts; Question 7: 2 pts; Question 8: 3 pts; Question 9: 2 pts)

    Geometry Circles Angles Arcs Test: questions 1–5

    1. Similar circles (2 points)

    Circle \(P\) has radius 6 and circle \(Q\) has radius 15.

    1. A translation followed by a dilation maps \(P\) onto \(Q\). Find the scale factor. (1 point)
    2. The circumference of \(P\) is \(12\pi\). Find the circumference of \(Q\). (1 point)

    2. Central and inscribed angles (2 points)

    In the circle, arc \(AB\) measures \(124^{\circ}\). Point \(O\) is the center and \(C\) is on the circle.

    1. Find \(m\angle AOB\). (1 point)
    2. Find \(m\angle ACB\). (1 point)
    ABCOarc 124°
    Arc AB measures 124°.

    3. Inscribed angle algebra (2 points)

    An inscribed angle measures \((5x+2)^{\circ}\) and intercepts an arc that measures \((12x-12)^{\circ}\). Find \(x\) and the measure of the angle.

    4. Triangle in a semicircle (2 points)

    Segment \(AB\) is a diameter of length 26. Point \(C\) is on the circle with \(AC=10\).

    1. Find \(m\angle ACB\). (1 point)
    2. Find \(BC\). (1 point)
    ABC2610?
    Segment AB is a diameter.

    5. Tangent and radius (3 points)

    Segment \(PT\) is tangent to the circle with center \(O\) at \(T\). The radius is 9 and \(OP=15\).

    1. Find \(m\angle OTP\). (1 point)
    2. Find \(PT\). (1 point)
    3. If \(m\angle TOP=53^{\circ}\), find \(m\angle OPT\). (1 point)
    OTP915
    Segment PT is tangent to the circle at T.

    Geometry Circles Angles Arcs Test: questions 6–9

    6. Tangents from a point (2 points)

    Tangent segments \(PA\) and \(PB\) touch a circle at \(A\) and \(B\), and \(m\angle APB=64^{\circ}\).

    1. Find the measure of minor arc \(AB\). (1 point)
    2. Find the measure of major arc \(AB\). (1 point)

    7. Chord and center (2 points)

    A chord of length 40 is drawn in a circle with radius 25. Find the distance from the center of the circle to the chord.

    8. Inscribed quadrilateral (3 points)

    Quadrilateral \(ABCD\) is inscribed in a circle. The angles are \(m\angle A=(3x+15)^{\circ}\), \(m\angle B=(4y+2)^{\circ}\), \(m\angle C=(5x-3)^{\circ}\) and \(m\angle D=(2y+22)^{\circ}\). Find \(x\), \(y\) and the measure of each angle.

    A: (3x+15)°B: (4y+2)°C: (5x-3)°D: (2y+22)°
    Quadrilateral ABCD is inscribed in a circle.

    9. Skating rink (2 points)

    A circular skating rink is 60 feet across. Maya stands at \(A\) and Jamal stands at \(B\), at opposite ends of a diameter. Noah stands at \(N\) on the edge of the rink, 36 feet from Maya.

    1. Find the measure of the angle formed by Noah’s lines of sight to Maya and Jamal. (1 point)
    2. How far is Noah from Jamal? (1 point)

    Circles: Chords, Arcs and Inscribed Angles: Geometry test answer key

    Which questions appear on the geometry circles angles arcs test?

    Question 1 maps a circle of radius 6 onto one of radius 15 with a translation and a dilation. Question 2 gives an arc of 124 degrees. Next, question 3 uses \((5x+2)^{\circ}\) and \((12x-12)^{\circ}\). Question 4 has a diameter of 26 and a chord of 10.

    How should you plan your time?

    Spend most of the effort on question 5, which has 3 points, and question 8, which has 3 as well. In question 5, the radius is 9 and \(OP=15\), so the tangent segment is 12. In question 7, a chord of 40 in a radius-25 circle sits 15 from the center.

    Which mistakes lose points?

    • Forgetting to halve an arc for an inscribed angle.
    • Using the full chord instead of half in the right triangle.
    • Adding adjacent angles of a cyclic quadrilateral.

    How can you study before the test?

    Sketch each theorem once and label its numbers. Then solve two tangent problems with the Pythagorean theorem. Finally, explain aloud why equal chords have equal arcs.

    Next step after this geometry circles angles arcs test: Circles: Chords, Arcs and Inscribed Angles test answer key

    Printable PDF · Test

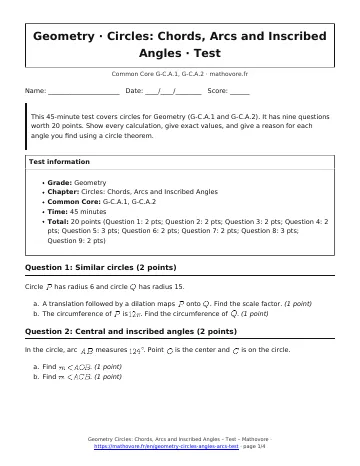

    Geometry Circles: Chords, Arcs and Inscribed Angles test
