Key takeaway: This geometry circles angles worksheet answer key gives a complete solution for all 24 problems. Check each step against your own work, especially which intercepted arc an angle uses. Compare your diagram with the figures for the harder problems before you mark an answer wrong.
This answer key gives a complete worked solution for each problem on the circles worksheet. Check each step against your work, especially which arc an angle intercepts, and compare your figures with the diagrams shown for the harder problems.
Geometry Circles Angles Worksheet Answer Key: problems 1–5
1. Similar circles
(a) Translate A so its center lands on the center of B. Then dilate about that center by the scale factor \(\frac{10}{4}=\frac{5}{2}=2.5\).
(b) \(\frac{2\pi(10)}{2\pi(4)}=\frac{20\pi}{8\pi}=2.5\).
(a) Translation, then dilation with scale factor 2.5. (b) The ratio is 2.5.
2. Ratio of circumferences
\(C_P=2\pi(3)=6\pi\) and \(C_Q=2\pi(12)=24\pi\). The ratio is \(\frac{24\pi}{6\pi}=4\), the same as the ratio of the radii, \(\frac{12}{3}=4\).
\(C_P=6\pi\) in, \(C_Q=24\pi\) in, ratio 4.
3. Central angle and arc
A central angle equals its intercepted arc, so minor arc \(AB\) is \(72^{\circ}\). The full circle is \(360^{\circ}\), so major arc \(AB\) is \(360^{\circ}-72^{\circ}=288^{\circ}\).
Minor arc \(72^{\circ}\); major arc \(288^{\circ}\).
4. Inscribed angle from an arc
An inscribed angle is half its intercepted arc: \(\frac{1}{2}(110^{\circ})=55^{\circ}\).
\(m\angle ACB=55^{\circ}\)
5. Arc length from an inscribed angle
The intercepted arc is twice the inscribed angle: \(2(27^{\circ})=54^{\circ}\). The rest of the circle is \(360^{\circ}-54^{\circ}=306^{\circ}\).
Arc length \(=\frac{54}{360}\cdot 2\pi(10)=\frac{3}{20}\cdot 20\pi=3\pi\).
Arc \(PR=54^{\circ}\); other arc \(306^{\circ}\); length \(3\pi\text{ cm}\approx 9.42\text{ cm}\)
Geometry Circles Angles Worksheet Answer Key: problems 6–10
6. Inscribed angle algebra
The angle is half the arc: \(3x+5=\frac{1}{2}(8x-10)\), so \(3x+5=4x-5\) and \(x=10\).
Angle: \(3(10)+5=35^{\circ}\). Arc: \(8(10)-10=70^{\circ}\). Check: \(\frac{70}{2}=35\).
\(x=10\), angle \(35^{\circ}\), arc \(70^{\circ}\).
7. Triangle in a semicircle
\(\angle ACB\) is inscribed in a semicircle, so it is \(90^{\circ}\). The angles of a triangle sum to \(180^{\circ}\): \(\angle B=180^{\circ}-90^{\circ}-34^{\circ}=56^{\circ}\).
\(\angle ACB=90^{\circ}\) and \(\angle B=56^{\circ}\).
8. Semicircle algebra
\(\angle ACB=90^{\circ}\), so the other two angles sum to \(90^{\circ}\): \((2x+4)+(3x+6)=90\), \(5x+10=90\), \(x=16\).
\(2(16)+4=36^{\circ}\) and \(3(16)+6=54^{\circ}\). Check: \(36+54=90\).
\(x=16\); the angles are \(36^{\circ}\) and \(54^{\circ}\).
9. Angles on the same arc
Both inscribed angles intercept arc \(AB\), so each is half of \(82^{\circ}\): \(\frac{1}{2}(82^{\circ})=41^{\circ}\).
\(m\angle ACB=m\angle ADB=41^{\circ}\)
10. Radius and tangent
The radius \(OA\) is perpendicular to the tangent, so triangle \(OAP\) has a right angle at \(A\). \(OP=\sqrt{6^{2}+8^{2}}=\sqrt{100}=10\).
\(OP=10\)
Geometry Circles Angles Worksheet Answer Key: problems 11–15
11. Angle at a tangent
Since \(\overline{OA}\perp\ell\), \(\angle OAP=90^{\circ}\). Then \(m\angle APO=180^{\circ}-90^{\circ}-52^{\circ}=38^{\circ}\).
\(m\angle APO=38^{\circ}\)
12. Two tangents
\(\angle AOB\) is a central angle, so it is \(130^{\circ}\). The radii meet the tangents at right angles, so quadrilateral \(OAPB\) has angles \(90^{\circ}\), \(90^{\circ}\) and \(130^{\circ}\) at \(A\), \(B\) and \(O\). The angles of a quadrilateral sum to \(360^{\circ}\): \(m\angle APB=360^{\circ}-90^{\circ}-90^{\circ}-130^{\circ}=50^{\circ}\).
\(m\angle AOB=130^{\circ}\) and \(m\angle APB=50^{\circ}\).
13. Equal tangent segments
Triangle \(OAP\) has a right angle at \(A\): \(PA=\sqrt{13^{2}-5^{2}}=\sqrt{144}=12\). Triangle \(OBP\) is congruent, so \(PB=12\).
\(PA=PB=12\)
14. Distance to a chord
The perpendicular from the center bisects the chord, so half the chord is 12. The distance \(d\) satisfies \(d^{2}+12^{2}=13^{2}\), so \(d=\sqrt{169-144}=5\).
The distance is 5 units.
15. Chord from a distance
Half the chord is \(\sqrt{17^{2}-8^{2}}=\sqrt{225}=15\), so the chord is \(2(15)=30\).
The chord is 30 units long.
Geometry Circles Angles Worksheet Answer Key: problems 16–20
16. Equal chords
Equal chords cut equal arcs: \(4x+6=6x-14\), so \(20=2x\) and \(x=10\).
Arc \(AB\): \(4(10)+6=46^{\circ}\). Arc \(CD\): \(6(10)-14=46^{\circ}\).
\(x=10\); each arc is \(46^{\circ}\).
17. Inscribed quadrilateral
Opposite angles of an inscribed quadrilateral are supplementary. \(m\angle C=180^{\circ}-105^{\circ}=75^{\circ}\) and \(m\angle D=180^{\circ}-82^{\circ}=98^{\circ}\). Check: \(105+82+75+98=360\).
\(m\angle C=75^{\circ}\) and \(m\angle D=98^{\circ}\).
18. Inscribed quadrilateral algebra
Opposite angles sum to \(180^{\circ}\): \((4x+10)+(2x+20)=180\), \(6x+30=180\), \(x=25\).
\(\angle A=4(25)+10=110^{\circ}\) and \(\angle C=2(25)+20=70^{\circ}\).
\(x=25\), \(\angle A=110^{\circ}\), \(\angle C=70^{\circ}\).
19. Ferris wheel seats
(a) \(\frac{360^{\circ}}{12}=30^{\circ}\).
(b) Three gaps: \(3(30^{\circ})=90^{\circ}\).
(c) Her angle is inscribed and intercepts the \(90^{\circ}\) arc, so it is \(\frac{1}{2}(90^{\circ})=45^{\circ}\).
(a) \(30^{\circ}\). (b) \(90^{\circ}\). (c) \(45^{\circ}\).
20. Pizza cut
The radius is 10 inches and half the chord is 6 inches. The distance from the center is \(\sqrt{10^{2}-6^{2}}=\sqrt{64}=8\) inches.
The cut is 8 inches from the center.
Geometry Circles Angles Worksheet Answer Key: problems 21–24
21. Plaza lights
Angle \(ALB\) is inscribed in a semicircle, so \(m\angle ALB=90^{\circ}\). Triangle \(ALB\) is right with hypotenuse 80: \(LB=\sqrt{80^{2}-48^{2}}=\sqrt{6400-2304}=\sqrt{4096}=64\).
\(m\angle ALB=90^{\circ}\); Liam is 64 feet from pole \(B\).
22. Pond path
The path is tangent, so \(OT\perp TP\). \(OP=\sqrt{30^{2}+40^{2}}=50\) yards. The nearest point of the water is on segment \(OP\), \(30\) yards from \(O\), so Mei is \(50-30=20\) yards from the water.
\(OP=50\) yards; the shortest distance to the water is 20 yards.
23. Central and inscribed algebra
The central angle is twice the inscribed angle: \(12x-20=2(5x-5)\), so \(12x-20=10x-10\), \(2x=10\) and \(x=5\).
\(\angle AOB=12(5)-20=40^{\circ}\) and \(\angle ACB=5(5)-5=20^{\circ}\).
\(x=5\), \(\angle AOB=40^{\circ}\), \(\angle ACB=20^{\circ}\).
24. Tangents and arcs algebra
The angle at \(P\) and the minor arc are supplementary: \((4x-2)+(6x+2)=180\), so \(10x=180\) and \(x=18\).
\(\angle P=4(18)-2=70^{\circ}\) and arc \(AB=6(18)+2=110^{\circ}\).
\(x=18\), \(\angle P=70^{\circ}\), arc \(AB\) \(=110^{\circ}\).
How do you use the circle theorem answer key?
For problem 7, the angle in the semicircle is 90 degrees, so the third angle is \(90-34=56\) degrees. Problem 10 gives \(OP=10\), because \(6^{2}+8^{2}=100\). Then problem 14 gives a distance of 5. If you wrote 12, you stopped at half the chord.
Which answers deserve extra attention?
Problem 15 gives a chord of 30, since \(\sqrt{17^{2}-8^{2}}=15\) is only half. Problem 17 gives \(m\angle C=75^{\circ}\) and \(m\angle D=98^{\circ}\). For problem 20, the pizza chord is 8 inches from the center.
What should you check in algebra problems?
Set up the equation from the theorem, solve, then substitute back. In problem 6, an inscribed angle equals half its arc, so \(3x+5=\frac{1}{2}(8x-10)\). That step leads to a clean solution.
What if your angle is off?
Re-read which arc the angle opens onto. Then check whether the vertex is on the circle, at the center, or outside. After that, rework the problem with the matching rule.

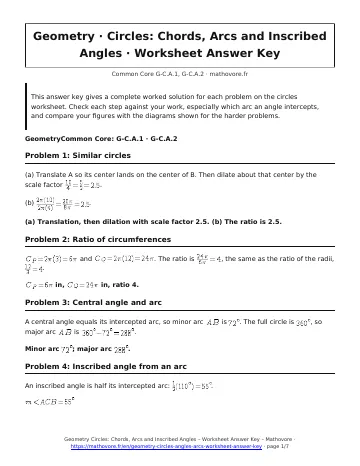

Printable PDF · Worksheet Answer Key
