4th Grade Line Plots Test (Grade 4) – Printable PDF with Fractions

    Key takeaway: This grade 4 line plots test pairs nine questions with fraction number lines. It carries 20 points in total and checks how students read points, count marks, and build a plot from eight button widths. Students then add and subtract measurements, write answers as simplified fractions or mixed numbers, and explain one mistake. Calculators are not allowed. In addition, the scoring key lists partial credit for each question, so teachers can grade quickly.

    This test checks standard 4.MD.B.4. Read each number line carefully, show your work for the longer problems, and write answers as simplified fractions or mixed numbers. The test has 9 questions worth 20 points in all. Allow 45 minutes.

    Test information
    • Grade: Grade 4
    • Chapter: Line Plots with Fractions
    • Common Core: 4.MD.B.4
    • Time: 45 minutes
    • Total: 20 points (Question 1: 2 pts; Question 2: 2 pts; Question 3: 2 pts; Question 4: 3 pts; Question 5: 2 pts; Question 6: 2 pts; Question 7: 3 pts; Question 8: 2 pts; Question 9: 2 pts)

    Grade 4 Line Plots Test: questions 1–5

    1. Reading a number line (2 points)

    Write the fraction or mixed number for each point.

    01/41/23/411 1/41 1/2CD
    1. Point C (1 point)
    2. Point D (1 point)

    2. Reading a line plot (2 points)

    Use the line plot of ribbon lengths.

    01/41/23/411 1/41 1/21 3/42Length of ribbon (feet)
    1. Count the ribbons that are \(1\text{ ft}\) long. (1 point)
    2. Name the length that appears most often. (1 point)

    3. Counting and comparing (2 points)

    Use the line plot of screw lengths.

    11 1/41 1/21 3/42Length of screw (inches)
    1. Count the screws that were measured. (1 point)
    2. Count the screws that are longer than \(1\frac{1}{4}\text{ in.}\). (1 point)

    4. Make a line plot (3 points)

    Use the widths of 8 buttons that Priya measured, in inches: \(\frac{1}{2}\), \(\frac{3}{4}\), \(\frac{3}{4}\), \(1\), \(1\), \(1\), \(1\frac{1}{4}\), \(1\frac{1}{2}\).

    01/41/23/411 1/41 1/2Width of button (inches)
    1. Copy the number line and make a line plot of the data. (2 points)
    2. Count the buttons that are wider than \(\frac{1}{2}\text{ in.}\). (1 point)

    5. Subtracting from a plot (2 points)

    Use the line plot of tomato plant heights.

    1 1/21 3/422 1/42 1/2Height of tomato plant (feet)
    1. Find how much taller the tallest plant is than the shortest plant. (1 point)
    2. Find how much taller the tallest plant is than the most common height. (1 point)

    Grade 4 Line Plots Test: questions 6–9

    6. Adding from a plot (2 points)

    Use the line plot of the clay snakes Liam rolled.

    01/211 1/22Length of clay snake (inches)
    1. Find the total length of the longest and the shortest snake. (1 point)
    2. Find the total length of the two snakes that are \(1\frac{1}{2}\text{ in.}\) long and one snake that is 1 inch long. (1 point)

    7. Total length (3 points)

    Find the total length of all the wood scraps Ethan has, shown on the line plot. Write the answer as a mixed number.

    1/23/411 1/4Length of wood scrap (feet)

    8. Find the mistake (2 points)

    Explain Maya’s mistake (1 point) and find the correct difference (1 point). Maya subtracted \(5\frac{1}{4} – 2\frac{3}{4}\) and wrote \(3\frac{2}{4}\).

    9. Multi-step problem (2 points)

    Find how much longer the longer ribbon is than the other ribbon after the cut. Sofia measures two ribbons: one is \(3\frac{1}{4}\text{ in.}\) long and the other is \(2\frac{1}{4}\text{ in.}\) long. She cuts \(\frac{3}{4}\text{ in.}\) from the longer ribbon.

    Line Plots with Fractions: Grade 4 test answer key

    What does the grade 4 line plots test measure?

    Question 1 reads points C and D as a fraction or mixed number. Then question 2 uses a plot of ribbon lengths and asks how many ribbons are 1 foot long. Next, question 3 counts the screws measured and compares groups. These first items check reading before any arithmetic starts.

    How does the test move from drawing to computing?

    Question 4 gives the widths of 8 buttons, such as \(\frac{1}{2}\) and \(\frac{3}{4}\) inch, and students make their own plot. It is worth 3 points. Meanwhile, question 5 finds how much taller the tallest tomato plant is than the shortest. After that, question 6 adds the longest and shortest clay snakes, and question 7 totals every wood scrap.

    Which questions ask for explanation?

    Question 8 shows Maya subtracting \(5\frac{1}{4}\) incorrectly, so students must name the slip and fix it. Finally, question 9 compares two ribbons after a cut, which takes two steps. Therefore, students should write each step on its own line.

    Preparing students for the paper

    Before test day, ask your child to label tick marks aloud on three different number lines. Then have them plot five lengths in eighths. Also practice one mixed-number subtraction with regrouping each day. Finally, remind students to name the unit in every answer.

    Next step after this grade 4 line plots test: Line Plots with Fractions test answer key

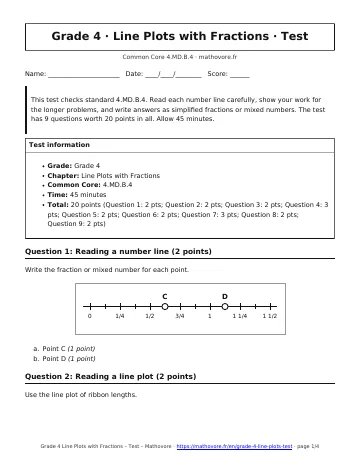

    Printable PDF · Test

    Grade 4 Line Plots with Fractions test

    • 📄 US Letter
    • 💾 89 KB
    • 🖨️ Black and white friendly
    Download the PDF
