8th Grade Congruence and Similarity Worksheet with Answers – PDF

    Key takeaway: This grade 8 congruence similarity worksheet gives 24 printable problems on moving points and triangles with translations, reflections, rotations, and dilations. Students write image coordinates, name a single rigid motion, find scale factors from coordinates, and decide whether two figures are similar. Real settings such as photos, logos, and game characters close the set.

    Early problems use single points, while later ones use triangles and sequences of transformations. An answer key sits on its own page, ready for parents or teachers.

    These twenty-four problems practice Common Core standards 8.G.A.2, 8.G.A.3 and 8.G.A.4. Move points and triangles with translations, reflections, rotations and dilations on the coordinate plane, then use scale factors to decide whether figures are similar.

    The problems run from single points to word problems and two-step sequences. Work from easiest to hardest and compare your coordinates with the answer key.

    Grade 8Common Core: 8.G.A.2 · 8.G.A.3 · 8.G.A.4

    Grade 8 Congruence Similarity Worksheet: problems 1–5

    1. Translate a point

    Translate the point \(A(3, -2)\) 4 units right and 5 units up. Write the coordinates of the image.

    2. Reflect over the x-axis

    Reflect the point \(B(5, -3)\) across the \(x\)-axis. Write the image.

    3. Reflect over the y-axis

    Reflect the point \(C(-4, 6)\) across the \(y\)-axis. Write the image.

    4. Rotate 90 degrees

    Rotate the point \(D(2, 5)\) \(90^{\circ}\) counterclockwise about the origin. Write the image.

    5. Rotate 180 degrees

    Rotate the point \(E(-3, 4)\) \(180^{\circ}\) about the origin. Write the image.

    Grade 8 Congruence Similarity Worksheet: problems 6–10

    6. Rotate 270 degrees

    Rotate the point \(F(6, -1)\) \(270^{\circ}\) counterclockwise about the origin. Write the image.

    7. Dilate a point

    Dilate the point \(G(4, -6)\) about the origin with scale factor 3. Write the image.

    8. Shrink a point

    Dilate the point \(H(12, 8)\) about the origin with scale factor \(\frac{1}{4}\). Write the image.

    9. Translate a triangle

    Translate triangle \(ABC\) 4 units left and 2 units up. Write the coordinates of \(A^{\prime}\), \(B^{\prime}\) and \(C^{\prime}\).

    xy−3−2−11234561234560ABC
    Triangle \(ABC\).

    10. Name the motion

    Name the single rigid motion that maps triangle \(DEF\) onto triangle \(D^{\prime}E^{\prime}F^{\prime}\). Give the rule for \((x,y)\).

    xy−6−5−4−3−2−112345612340DEFD′E′F′
    Triangle \(DEF\) and its image.

    Grade 8 Congruence Similarity Worksheet: problems 11–15

    11. Reflect a triangle

    Reflect triangle \(GHI\) across the \(x\)-axis. Write the coordinates of the image vertices.

    xy−1123456−6−5−4−3−2−11234560GHI
    Triangle \(GHI\).

    12. Rotate a triangle

    Rotate triangle \(JKL\) \(90^{\circ}\) counterclockwise about the origin. Write the coordinates of the image vertices.

    xy−4−3−2−11234561234560JKL
    Triangle \(JKL\).

    13. Dilate a triangle

    Dilate triangle \(MNO\) about the origin with scale factor \(\frac{1}{2}\). Write the coordinates of the image vertices.

    xy123456781234567890MNO
    Triangle \(MNO\).

    14. Rigid motions keep size

    In triangle \(ABC\), \(AB=6\text{ in}\) and \(\angle B=52^{\circ}\). The triangle is reflected across a line to form triangle \(A^{\prime}B^{\prime}C^{\prime}\). Find \(A^{\prime}B^{\prime}\) and \(\angle B^{\prime}\).

    15. Dilation and lengths

    A triangle has sides \(4\text{ in}\), \(7\text{ in}\) and \(9\text{ in}\), and an angle of \(38^{\circ}\). It is dilated with scale factor 3. Find the three new side lengths and the new angle measure.

    Grade 8 Congruence Similarity Worksheet: problems 16–20

    16. Find the scale factor

    A dilation about the origin sends \(A(2,3)\) to \(A^{\prime}(10,15)\). Find the scale factor, then find the image of \(B(-4,1)\).

    17. A reducing dilation

    A dilation about the origin sends \(P(-6,9)\) to \(P^{\prime}(-2,3)\). Find the scale factor, then find the image of \(Q(12,-3)\).

    18. Two moves in a row

    Triangle \(RST\) has vertices \(R(1,1)\), \(S(4,1)\), \(T(4,3)\). Reflect it across the \(x\)-axis, then translate the result 3 units left. Write the final vertices. Is the final triangle congruent to \(RST\)? Explain.

    19. Similar rectangles

    Are the two rectangles similar? If so, find the scale factor from the small rectangle to the large one.

    4 in6 in10 in15 in
    Two rectangles, drawn to scale.

    20. Missing side of a triangle

    The two triangles are similar. Find the scale factor and the length \(x\).

    8 in6 in10 in12 in9 inx
    Two similar right triangles with matching angle marks.

    Grade 8 Congruence Similarity Worksheet: problems 21–24

    21. Enlarging a photo

    Maya has a photo that is 4 inches wide and 6 inches tall. She enlarges it, keeping the same shape, so it is 10 inches wide. How tall is the enlarged photo? Name the scale factor.

    22. Logo on a screen

    A school-store logo is 3 inches wide and 2 inches tall on a flyer. Jamal shrinks and enlarges copies for other uses. On a banner the logo is 4.5 inches wide. Find the scale factor and the banner height. Then find the width of a sticker copy that is 1.5 inches tall.

    23. Describe a sequence

    Describe a sequence of a dilation about the origin and a translation that maps triangle \(ABC\) onto triangle \(DEF\). Are the triangles similar? Congruent?

    xy−4−3−2−1123451234560ABCDEF
    Triangles \(ABC\) and \(DEF\).

    24. Game character

    Diego designs a game character as a triangle with vertices \((2,4)\), \((6,4)\), \((2,10)\). He enlarges it with a dilation about the origin with scale factor 1.5, then flips it across the \(y\)-axis so it faces left. Write the final vertices. How long is the horizontal side of the final triangle?

    Congruence, Dilations and Similarity: Grade 8 worksheet answer key

    Which point problems open the worksheet?

    First, Problem 1 translates A(3, -2) four units right and five units up. Next, Problem 2 reflects B(5, -3) across the x-axis, and Problem 3 reflects C(-4, 6) across the y-axis. Then Problems 4 through 6 rotate D(2, 5), E(-3, 4), and F(6, -1) by 90, 180, and 270 degrees. Each rotation uses a coordinate rule about the origin.

    How do dilations work on a grade 8 congruence similarity worksheet?

    Problem 7 dilates G(4, -6) with scale factor 3, so multiply both coordinates by 3. Problem 8 shrinks H(12, 8) by one fourth. Next, Problems 16 and 17 run backward: A(2, 3) goes to (10, 15), so k is 5, while P(-6, 9) goes to (-2, 3), so k is one third.

    Which problems compare size and shape?

    Problem 14 reflects triangle ABC and asks which measures stay the same. Because a reflection is rigid, the side of 6 inches and the angle of 52 degrees both survive. Problem 15 dilates a triangle, so the sides change but the 38 degree angle does not. Problems 19 and 20 test similarity with rectangles and right triangles.

    How do the real-world problems connect?

    Maya enlarges a 4 by 6 inch photo to a width of 10 inches, so the scale factor is 2.5 and the height must follow. Jamal resizes a flyer logo, and Diego enlarges a triangular game character. In each story, one scale factor controls both dimensions.

    Verify your images

    For each image you plot, measure one side and one angle. If the transformation is rigid, the measures should match the original. If it is a dilation, divide to confirm the scale factor. Then correct any vertex that fails the test.

    Next step after this grade 8 congruence similarity worksheet: Congruence, Dilations and Similarity worksheet answer key

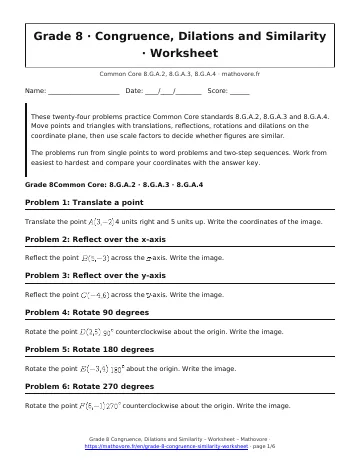

    Printable PDF · Worksheet

    Grade 8 Congruence, Dilations and Similarity worksheet

    • 📄 US Letter
    • 💾 95 KB
    • 🖨️ Black and white friendly
    Download the PDF
