Grade 8 Lines of Best Fit Lesson: Scatter Plots and Linear Models

    Key takeaway: This grade 8 lines of best lesson explains how a straight line can summarize the trend in a scatter plot. It covers standards 8.SP.A.2 and 8.SP.A.3, so 8th grade students learn to draw a line, judge its fit and read its equation as a model.

    Work through the examples slowly. Each one connects a picture to an equation and then to a real prediction.

    A line of best fit is a straight line through a scatter plot that follows the trend of the data. Its equation, y = mx + b, is a linear model: the slope m is the change in y per 1-unit rise in x, and b is the predicted y at x = 0. Use it to predict.

    Grade 8Common Core: 8.SP.A.2 · 8.SP.A.3

    Grade 8 Lines of Best Lesson: key facts

    • Standards 8.SP.A.2 and 8.SP.A.3: fit a line informally, judge the fit, and interpret the equation of a linear model.
    • A good line has points close to it on both sides; a curve or wide scatter means a line is a poor model.
    • Slope = change in y per 1 unit of x; y-intercept = predicted y when x = 0.
    • Find the equation from two points on the line, not necessarily data points.
    • Predictions inside the data range are more reliable than predictions far outside it.

    What is a line of best fit?

    A scatter plot shows pairs of data as points. When the points follow a roughly straight band, you can draw a line of best fit through the middle of them. The line is a linear model: its equation \(y=mx+b\) describes the trend and lets you make predictions.

    012345678405060708090100Hours studiedQuiz score
    Hours studied and quiz score for seven students, with the line \(y=6x+52\).

    How do you judge how well a line fits?

    Look at the vertical gaps between the points and the line. A good line passes close to the points, with some points above it and some below. A poor line leaves points far away, or the points curve in a way a straight line cannot follow.

    Vocabulary

    Gap (residual): the vertical distance from a data point to the line.

    Outlier: a point that sits far from the pattern of the others.

    56789101112135060708090100Shoe sizeTest score
    A poor fit: the gaps to the flat line are as large as 16 points, and the points show no trend.

    How do you find the equation of a line of best fit?

    1. Draw a line close to the points, with about as many points on each side.
    2. Pick two points on the line and read their coordinates.
    3. Find the slope: \(m=\frac{y_{2}-y_{1}}{x_{2}-x_{1}}\).
    4. Substitute one point into \(y=mx+b\) to find \(b\).

    Worked example. The line in the first figure passes through \((2,64)\) and \((6,88)\). Then \(m=\frac{88-64}{6-2}=6\). From \(64=6(2)+b\) we get \(b=52\), so \(y=6x+52\).

    012345678405060708090100Hours studiedQuiz score(2, 64)(6, 88)run = 4rise = 24
    Slope from two points on the line: rise 24 over run 4 gives 6.

    What do the slope and y-intercept mean?

    The slope is the change in \(y\) for each 1-unit increase in \(x\). The y-intercept is the predicted \(y\) when \(x=0\), although that value is not always meaningful. For lemonade sales the model is \(y=2x-108\), where \(x\) is the temperature in \(^{\circ}\text{F}\) and \(y\) is cups sold. The slope 2 means about 2 more cups for every 1\(^{\circ}\text{F}\) rise. The intercept \(-108\) has no real meaning, because a stand would not run at \(0^{\circ}\text{F}\).

    To predict, substitute: at \(78^{\circ}\text{F}\), \(y=2(78)-108=48\) cups. Predictions inside the range of the data are more reliable than predictions far outside it.

    55606570758085909501020304050607080Temperature (°F)Cups sold
    Reading a prediction from the line: at 78\(^{\circ}\text{F}\) the model gives 48 cups.

    Lines of Best Fit and Linear Models: frequently asked questions

    What is a line of best fit?

    It is a straight line that follows the overall trend of the points in a scatter plot. It does not have to touch every point. About as many points should lie above it as below it.

    How do you tell if a line fits the data well?

    Check the vertical gaps between the points and the line. If the gaps are small and the points fall on both sides, the fit is good. If the points curve or are spread widely, the fit is poor.

    How do you find the equation of a line of best fit?

    Choose two points on the line and compute the slope with rise over run. Then substitute one point into \(y=mx+b\) to find the y-intercept.

    What does the slope of a linear model mean?

    The slope is the predicted change in \(y\) for each 1-unit increase in \(x\). In \(y=6x+52\), each extra hour of study adds about 6 points to the predicted score.

    Is the y-intercept always meaningful?

    No. It is the predicted value when \(x=0\), which may be outside the data. In the lemonade model \(y=2x-108\), the intercept \(-108\) is not a real number of cups.

    How do you judge a line of best fit?

    A good line has points close to it on both sides, with no clear curve left over. The gap between a point and the line is a residual. For example, if the line \(y=6x+52\) predicts 70 for 3 hours of study but a student scored 67, the gap is 3 points. Small gaps mean a good fit.

    How do you find the equation of a trend line?

    First, pick two points on the line, not two data points. Next, find the slope. For \((10,5)\) and \((30,17)\), the slope is \(\frac{12}{20}=0.6\). Then solve for the y-intercept with one point. If the slope is 6 and the line passes through \((2,64)\), then \(64=12+b\), so \(b=52\).

    What do slope and intercept mean in a linear model?

    The slope tells how much y moves when x grows by one. In \(y=-2x+26\), a car loses 2 thousand dollars of value per year. The intercept is the value at x equal to 0, so the car starts at 26 thousand dollars.

    • Predict inside the data range, because those predictions are more reliable.
    • A curved pattern needs a different model, not a straight line.

    What should you try next with trend lines?

    Sketch a scatter plot from a small table, then draw a line by eye. After that, write its equation and make one prediction. Finally, name one outlier and explain why it may sit far from the line.

    Next step after this grade 8 lines of best lesson: Lines of Best Fit and Linear Models worksheet

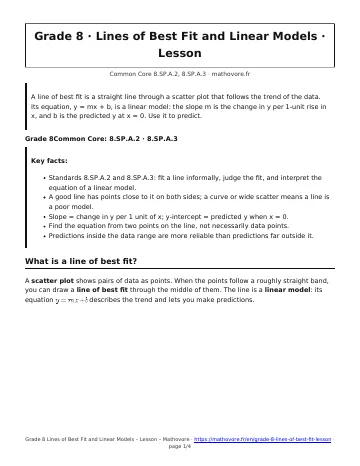

    Printable PDF · Lesson

    Grade 8 Lines of Best Fit and Linear Models lesson

    • 📄 US Letter
    • 💾 77 KB
    • 🖨️ Black and white friendly
    Download the PDF
