Key takeaway: This grade 8 angles parallel lines worksheet contains 24 printable problems on triangle angle sums, exterior angles, parallel lines with a transversal, and similar triangles. Students find missing angles, solve for x in angle expressions, and use real settings such as roof trusses, city streets, and quilt seams. A separate answer key shows each solution, so families can check the work.
Many items need an equation built from an angle rule. Others ask students to name the angle relationship they used.

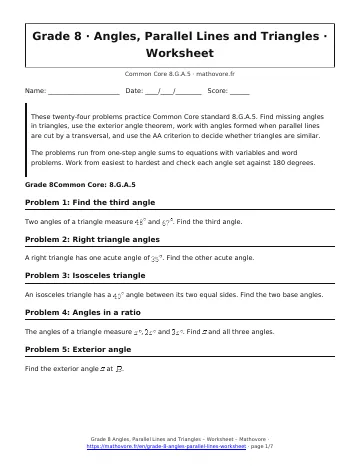

These twenty-four problems practice Common Core standard 8.G.A.5. Find missing angles in triangles, use the exterior angle theorem, work with angles formed when parallel lines are cut by a transversal, and use the AA criterion to decide whether triangles are similar.
The problems run from one-step angle sums to equations with variables and word problems. Work from easiest to hardest and check each angle set against 180 degrees.
Grade 8 Angles Parallel Lines Worksheet: problems 1–5
1. Find the third angle
Two angles of a triangle measure \(48^{\circ}\) and \(67^{\circ}\). Find the third angle.
2. Right triangle angles
A right triangle has one acute angle of \(35^{\circ}\). Find the other acute angle.
3. Isosceles triangle
An isosceles triangle has a \(40^{\circ}\) angle between its two equal sides. Find the two base angles.
4. Angles in a ratio
The angles of a triangle measure \(x^{\circ}\), \(2x^{\circ}\) and \(3x^{\circ}\). Find \(x\) and all three angles.
5. Exterior angle
Find the exterior angle \(x\) at \(B\).
Grade 8 Angles Parallel Lines Worksheet: problems 6–10
6. Missing remote angle
An exterior angle of a triangle measures \(130^{\circ}\). One remote interior angle measures \(80^{\circ}\). Find the other remote interior angle.
7. Corresponding angles
Lines \(l\) and \(m\) are parallel. Find \(x\).
8. Alternate interior angles
Lines \(l\) and \(m\) are parallel. Find \(x\).
9. Same-side interior angles
Lines \(l\) and \(m\) are parallel. Find \(x\).
10. Linear pair and vertical angles
Find \(x\) and \(y\).
Grade 8 Angles Parallel Lines Worksheet: problems 11–15
11. Alternate exterior angles
Lines \(l\) and \(m\) are parallel. Find \(x\).
12. Corresponding angles with x
Two parallel lines are cut by a transversal. Corresponding angles measure \((3x+10)^{\circ}\) and \(70^{\circ}\). Find \(x\).
13. Same-side interior with x
Two parallel lines are cut by a transversal. Same-side interior angles measure \((2x+20)^{\circ}\) and \((x+40)^{\circ}\). Find \(x\) and both angles.
14. Triangle with x
The angles of a triangle measure \((x+10)^{\circ}\), \((2x)^{\circ}\) and \((3x+20)^{\circ}\). Find \(x\) and each angle.
15. Exterior angle with x
An exterior angle of a triangle measures \((5x-10)^{\circ}\). The remote interior angles measure \((2x+15)^{\circ}\) and \((x+25)^{\circ}\). Find \(x\) and the exterior angle.
Grade 8 Angles Parallel Lines Worksheet: problems 16–20
16. All eight angles
Lines \(l\) and \(m\) are parallel and one angle measures \(74^{\circ}\). Find the measure of every labeled angle.
17. Same angles?
Triangle 1 has angles \(50^{\circ}\) and \(60^{\circ}\). Triangle 2 has angles \(60^{\circ}\) and \(70^{\circ}\). Are the triangles similar? Explain.
18. Not similar
Triangle 1 has angles \(45^{\circ}\) and \(65^{\circ}\). Triangle 2 has angles \(45^{\circ}\) and \(75^{\circ}\). Are the triangles similar? Explain.
19. Missing side by AA
Triangles \(ABC\) and \(DEF\) have two pairs of equal angles, marked below. Show that they are similar, then find \(EF\) when \(AB=6\), \(BC=8\) and \(DE=9\).
20. Roof truss
The top angle of an isosceles roof truss measures \(100^{\circ}\). Find the measure of each equal base angle \(x\).
Grade 8 Angles Parallel Lines Worksheet: problems 21–24
21. City streets
Oak Street and Pine Street are parallel. Main Street crosses both. On the east side of Main, the angle between Main and Oak inside the strip between the two streets measures \(52^{\circ}\). Find the angle between Main and Pine inside the strip on the east side, and on the west side.
22. Parallel line through a vertex
Sofia draws a line through \(C\) parallel to side \(AB\) of triangle \(ABC\), where \(\angle A=58^{\circ}\) and \(\angle B=67^{\circ}\). The line makes angles \(x\) and \(z\) with the sides, as shown. Find \(x\), \(z\) and \(\angle C\), and show that \(x+\angle C+z=180^{\circ}\).
23. Ramp brace
Liam builds a triangular brace for a skateboard ramp. At one corner the exterior angle measures \(125^{\circ}\), and the interior angle at a different corner measures \(35^{\circ}\). That corner is not next to the exterior angle. Find all three interior angles of the brace.
24. Quilt seam
Mei sews a quilt with two parallel stripes cut by a diagonal seam. A pair of alternate interior angles measures \((4x+8)^{\circ}\) and \((6x-32)^{\circ}\). Find \(x\) and the measure of each angle.
What do the first triangle problems ask?
First, Problem 1 gives angles of 48 and 67 degrees, so the third is 65. Next, Problem 2 starts with a right triangle and a 35 degree acute angle. Then Problem 3 is an isosceles triangle with a 40 degree apex, which leaves 140 degrees to share between two equal base angles. Finally, in Problem 4 the angles are x, 2x, and 3x, so 6x equals 180.
How do transversal problems work on a grade 8 angles parallel lines worksheet?
Problems 7 through 11 each name one relationship: corresponding, alternate interior, same-side interior, a linear pair, and alternate exterior. Next, Problems 12 and 13 put x into the expressions. For corresponding angles, set 3x plus 10 equal to 70 and get x equal to 20. For same-side interior angles, set the sum equal to 180.
Which problems use exterior angles and similar triangles?
Problem 6 gives an exterior angle of 130 and a remote angle of 80, so the other remote angle is 50. Next, Problems 17 and 18 compare two triangles by angles, and only one pair is similar. After that, Problem 19 uses AA to find a missing side once similarity is proven.
How do the real-world problems change the setting?
The roof truss in Problem 20 has a 100 degree top angle, so each base angle is 40. In Problem 21, two parallel streets are crossed by a third, and students find the angle at each corner. Then Sofia draws a parallel line through a vertex in Problem 22, while Liam builds a ramp brace in Problem 23.
Check your angle work
Add the three angles of every triangle you solved, and confirm the total is 180. Then, for transversal problems, test each pair of angles that should be supplementary. If a total fails, go back to the relationship you named, because the name usually reveals the slip.
