Points, Lines, Planes, Segments and Angles: Geometry Math Test – PDF Download

Question 1: Undefined terms and definitions (2 points)

1. Name the three undefined terms of geometry. (1 point)
2. Write a precise definition of a ray. (1 point)

Question 2: Naming rays and points (2 points)

Use the figure.

1. Name the ray with endpoint B that passes through C. (1 point)
2. Name a pair of opposite rays. (1 point)

Question 3: Segment addition (3 points)

K is between J and L.

1. Find x. (2 points)
2. Find KL. (1 point)

Question 4: Midpoint (2 points)

N is the midpoint of \(\overline{RS}\). \(RN=5x-4\) and \(NS=3x+8\).

1. Find x. (1 point)
2. Find RS. (1 point)

Question 5: Angle addition (3 points)

Ray OB lies inside \(\angle AOC\), and \(m\angle AOC\)\(=118^{\circ}\).

1. Find x. (2 points)
2. Find \(m\angle BOC\). (1 point)

Question 6: Complement problem (2 points)

The measure of an angle is 4 times the measure of its complement. Find the measure of the angle and of its complement.

Question 7: Vertical angles and linear pairs (3 points)

Two lines intersect. \(m\angle 1\)\(=(6x-8)^{\circ}\) and \(m\angle 3\)\(=(4x+14)^{\circ}\).

1. Find x. (1 point)
2. Find \(m\angle 1\). (1 point)
3. Find \(m\angle 2\) and name the angle relationship you used. (1 point)

Question 8: Angle bisector (3 points)

Ray BD bisects \(\angle ABC\).

1. Find x. (1 point)
2. Find \(m\angle ABC\). (1 point)
3. Classify \(\angle ABC\) as acute, right or obtuse. (1 point)

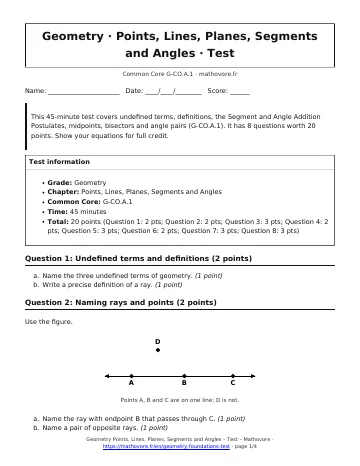

⬇ Download the Geometry Points, Lines, Planes, Segments and Angles test (PDF, 87 KB)

See every chapter on the Geometry math page.
