Algebra 2 Trig Graphs Test with Answer Key – Printable PDF, Nine Questions

    Key takeaway: This algebra 2 trig graphs test has nine questions on features of a sinusoid, equations from graphs, exact values, a cosine model, a phase shift, comparing two waves and three applied models. Give exact values in terms of \(\pi\), and include units in model answers. A calculator is allowed.

    This test covers graphs of sine and cosine in Algebra 2: amplitude, period, midline, phase shift, writing equations from graphs and modeling periodic situations. It has 9 questions worth 20 points. Allow 45 minutes, use radian mode, and show your work.

    Test information
    • Grade: Algebra 2
    • Chapter: Graphs of Trigonometric Functions
    • Common Core: F-TF.B.5, F-IF.C.7e
    • Time: 45 minutes
    • Total: 20 points (Question 1: 2 pts; Question 2: 2 pts; Question 3: 2 pts; Question 4: 2 pts; Question 5: 2 pts; Question 6: 2 pts; Question 7: 3 pts; Question 8: 3 pts; Question 9: 2 pts)

    Algebra 2 Trig Graphs Test: questions 1–5

    1. Features of a sinusoid (2 points)

    Consider \(y=-2\sin(3(x-\frac{\pi}{6}))+4\).

    1. State the amplitude and the midline. (1 point)
    2. State the period and the phase shift. (1 point)

    2. Equation from a graph (2 points)

    The graph shows a sine wave.

    0π/2π3π/22π-4-3-2-10123xy
    Graph for Question 2.
    1. State the midline and the amplitude. (1 point)
    2. Write an equation of the form \(y=A\sin(Bx)+D\) for the graph. (1 point)

    3. Evaluate exactly (2 points)

    Let \(f(x)=4\cos x-2\). Find the exact value of each.

    1. \(f(\frac{\pi}{3})\) (1 point)
    2. \(f(\pi)\) (1 point)

    4. Write a cosine model (2 points)

    A cosine function has a maximum value of \(9\), a minimum value of \(-1\) and a period of \(6\). Write an equation of the form \(y=A\cos(Bx)+D\) with \(A > 0\) and \(B > 0\). Show how you found each constant.

    5. Phase shift from a graph (2 points)

    The graph shows \(y=A\sin(x-C)\) with \(A > 0\) and \(0 < C < \pi\).

    0π/4π/23π/4π5π/43π/27π/42π-3-2-10123xy
    Graph for Question 5.

    Find \(A\) and \(C\), and write the equation.

    Algebra 2 Trig Graphs Test: questions 6–9

    6. Compare two sine waves (2 points)

    Compare \(f(x)=\sin x\) and \(g(x)=\sin 2x\) on the interval \([0,4\pi]\).

    1. State the period of each function. (1 point)
    2. How many complete cycles does each graph make on the interval? (1 point)

    7. Ferris wheel height (3 points)

    Priya’s Ferris wheel has height \(h(t)=30-22\cos(\frac{\pi t}{18})\) feet, where \(t\) is in seconds.

    1. Find the lowest and highest heights. (1 point)
    2. How long does one full turn take? (1 point)
    3. Find the height at \(t=6\) seconds. (1 point)

    8. Harbor depth model (3 points)

    The graph shows the depth of water at a harbor on one day, where \(t\) is the number of hours after midnight. The depth follows \(D(t)=A\cos(B(t-C))+K\) with \(A > 0\), \(B > 0\) and \(C > 0\).

    036912151821240246810121416hours after midnight (t)depth (ft)
    Graph for Question 8.
    1. Find the amplitude, midline and period. (1 point)
    2. Write the function \(D(t)\). (1 point)
    3. Find the depth at \(t=5\). (1 point)

    9. Temperature model (2 points)

    The temperature in Diego’s town is \(T(t)=60+12\sin(\frac{\pi(t-8)}{12})\) degrees Fahrenheit, where \(t\) is the number of hours after midnight.

    1. Find the maximum temperature and the time it first occurs. (1 point)
    2. Find the temperature at \(t=11\) to the nearest tenth. (1 point)

    Graphs of Trigonometric Functions: Algebra 2 test answer key

    What does the opening section ask?

    The first question analyzes \(y=-2\sin(3(x-\frac{\pi}{6}))+4\), so list the amplitude, midline, period and shift. The second reads a sine wave and asks for an equation, so find the midline and amplitude from the extremes. Then evaluate \(f(x)=4\cos x-2\) at \(\frac{\pi}{3}\) and \(\pi\), using exact values.

    How should you tackle the equation-writing questions?

    For the cosine model with maximum 9, minimum \(-1\) and period 6, find \(D\) as the average, \(A\) as half the gap and \(B\) as \(\frac{2\pi}{6}\). Next, use the graph of \(A\sin(x-C)\) to find \(C\), the distance the curve moved right. Finally, compare \(\sin x\) with \(\sin 2x\) on \([0,4\pi]\); count how many cycles each completes.

    What do the applied questions ask?

    The Ferris wheel \(h(t)=30-22\cos(\frac{\pi t}{18})\) needs its minimum, maximum and period. The harbor graph needs an equation from a plotted day. The temperature model \(60+12\sin(\frac{\pi(t-8)}{12})\) asks about a highest and lowest temperature and the hours between.

    What should you review at the end?

    Check each equation against one point on its graph. Then confirm that every period answer is the distance for one full cycle. Afterward, use the key to find which of the four features cost you points.

    Next step after this algebra 2 trig graphs test: Graphs of Trigonometric Functions test answer key

    Printable PDF · Test

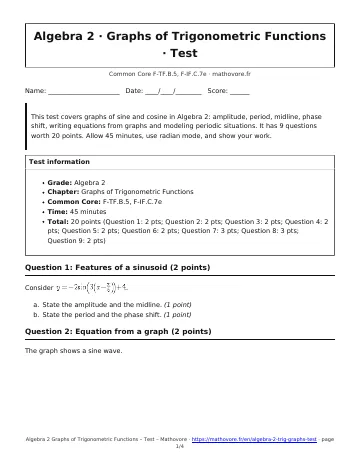

    Algebra 2 Graphs of Trigonometric Functions test
