Vectors in the Plane: Precalculus Math Test Answer Key – PDF Download

Precalculus Vectors Test Answer Key: questions 1–5

Question 1: Components and magnitude (2 points)

1. \(\langle 6, -8\rangle\) (\(4-(-2)=6\), \(-5-3=-8\))
2. \(\sqrt{36+64}=10\)

Scoring: 1 point for each correct part; subtracting the coordinates in the wrong order earns 0 for part (a).

Question 2: Magnitude and direction (2 points)

1. \(\sqrt{9+27}=\sqrt{36}=6\)
2. \(\tan\theta=\frac{3\sqrt{3}}{-3}=-\sqrt{3}\), reference angle \(60^{\circ}\), quadrant II: \(\theta=120^{\circ}\)

Scoring: 1 point for each part; for part (b) award the point only if the angle is in the correct quadrant (60° earns 0).

Question 3: Combining vectors (2 points)

1. \(\langle 6-8,\ -15+6\rangle=\langle -2, -9\rangle\)
2. \(\langle 2+8,\ -5-6\rangle=\langle 10, -11\rangle\)

Scoring: 1 point for each correct vector; 0 for a part with a sign error in the subtraction.

Question 4: Parallelogram rule (3 points)

1. \(\vec{a}=\langle 3, 2\rangle\), \(\vec{b}=\langle -1, 3\rangle\), so \(\vec{a}+\vec{b}=\langle 2, 5\rangle\)
2. \(\vec{a}-\vec{b}=\langle 4, -1\rangle\)
3. \(\sqrt{4+25}=\sqrt{29}\)

Scoring: 1 point per part. In part (a) the point requires correct components for both vectors and the sum.

Question 5: Unit vector (2 points)

1. \(\sqrt{81+144}=15\)
2. \(\frac{1}{15}\langle -9, 12\rangle=\langle -\frac{3}{5}, \frac{4}{5}\rangle\)

Scoring: 1 point per part; part (b) requires dividing every component by the magnitude.

Precalculus Vectors Test Answer Key: questions 6–9

Question 6: Dot product and angle (3 points)

1. \(2(-1)+4(3)=10\)
2. \(|\vec{u}|=\sqrt{20}=2\sqrt{5}\) and \(|\vec{v}|=\sqrt{10}\)
3. \(\cos\theta=\frac{10}{\sqrt{20}\sqrt{10}}=\frac{10}{\sqrt{200}}=\frac{\sqrt{2}}{2}\), so \(\theta=45^{\circ}\)

Scoring: 1 point per part.

Question 7: Perpendicular vectors (2 points)

Perpendicular means dot product 0: \(10k-20=0\) (1 point), so \(k=2\). Check: \(\langle 2, 5\rangle\cdot\langle 10, -4\rangle=20-20=0\).

Scoring: 1 point for the equation, 1 point for the value and the check.

Question 8: Airplane and wind (2 points)

Ground velocity \(\langle 70, 240\rangle\), speed \(\sqrt{4900+57600}=\sqrt{62500}=\)250 mph (1 point).

Direction: \(\tan^{-1}(\frac{70}{240})\approx\) \(16.3^{\circ}\) east of north (1 point).

Scoring: 1 point for the speed, 1 point for the angle.

Question 9: Two forces (2 points)

\(\vec{F_{1}}=\langle 20, 0\rangle\), \(\vec{F_{2}}=\langle 20\cos 120^{\circ},\ 20\sin 120^{\circ}\rangle=\langle -10,\ 10\sqrt{3}\rangle\) (1 point).

Resultant \(\langle 10,\ 10\sqrt{3}\rangle\), magnitude \(\sqrt{100+300}=\)20 pounds, direction \(\tan^{-1}(\sqrt{3})=\)\(60^{\circ}\) (1 point).

Scoring: 1 point for the components and sum, 1 point for magnitude and direction.

Scoring summary

How to use this precalculus vectors test answer key

Use this precalculus vectors test answer key to score the test fairly and to see which skills need more practice.

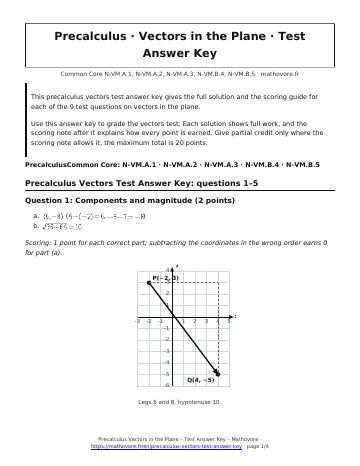

⬇ Download the Precalculus Vectors in the Plane test answer key (PDF, 182 KB)
