5th Grade Coordinate Plane Worksheet with Answers (Grade 5) – Printable PDF

    Key takeaway: This grade 5 coordinate plane worksheet has 22 printable problems on plotting and reading points in the first quadrant. Students name axes, write ordered pairs, find distances along grid lines and graph real-world data. The last six problems use a town map, bean plant growth, muffin batches and a hiking trail. CCSS 5.G.A.1 guides the set, with 5.G.A.2 reasoning in the word problems, and a separate key lets families check each answer.

    These 22 problems practice the coordinate plane in the first quadrant (5.G.A.1 and 5.G.A.2). You will name axes and the origin, read and plot ordered pairs, and find distances along grid lines.

    The last six problems are real-world situations such as maps, plant growth, and savings. Draw each point carefully and check the order of the numbers.

    Grade 5Common Core: 5.G.A.1 · 5.G.A.2

    Grade 5 Coordinate Plane Worksheet: problems 1–5

    1. Axes and origin

    Answer each question about the coordinate plane.

    1. Which axis is horizontal?
    2. Which axis is vertical?
    3. Write the ordered pair for the origin.

    2. Which number is which

    In the ordered pair \((6, 3)\), which number tells how far to move right? Which number tells how far to move up?

    3. Read the points

    Write the ordered pair for each point.

    0123456781234567ABCD
    Read the coordinates of A, B, C and D.

    4. Plot four points

    Plot and label these points: E \((3, 2)\), F \((5, 6)\), G \((8, 0)\), H \((0, 4)\).

    0123456781234567
    Use this grid to plot the four points.

    5. Points on the axes

    Look at these points: \((0, 5)\), \((5, 0)\), \((3, 3)\), \((0, 0)\). Which lie on the x-axis? Which lie on the y-axis?

    Grade 5 Coordinate Plane Worksheet: problems 6–10

    6. Right and up

    Start at the origin. Move 4 units right and 7 units up. Write the ordered pair for where you land.

    7. Same numbers, different points

    Point P is 9 units right and 2 units up from the origin. Point Q is 2 units right and 9 units up. Write both ordered pairs. Are P and Q the same point?

    8. Distance in a row

    How many units apart are K \((2, 3)\) and L \((7, 3)\)?

    012345678912345KL
    Points K and L.

    9. Distance in a column

    How many units apart are the points \((4, 1)\) and \((4, 8)\)?

    10. Find the missing number

    Write the ordered pair for each point.

    1. Point K is on the y-axis, 7 units above the origin.
    2. Point M is on the x-axis, 6 units to the right of the origin.

    Grade 5 Coordinate Plane Worksheet: problems 11–15

    11. A rectangle on the grid

    Plot these points and connect them in order: \((1, 1)\), \((6, 1)\), \((6, 4)\), \((1, 4)\). Name the shape. Find the length of its longest side.

    12. The fourth corner

    The grid shows three corners of a rectangle: \((2, 2)\), \((8, 2)\), and \((8, 5)\). Write the ordered pair of the fourth corner.

    0123456789101234567
    Three corners of a rectangle.

    13. Counting by twos

    On this grid each square stands for 2 units. Write the ordered pairs of points Q and R.

    02468101224681012QR
    Each grid line counts by 2.

    14. Blocks on a map

    Each square on the map is one block. How many blocks is it from the Library to the Park? From the Park to the School?

    01234567891234567LibraryParkSchool
    One square equals one block.

    15. Plant growth data

    Priya measured her bean plant. Week 1: 2 inches. Week 2: 4 inches. Week 3: 5 inches. Week 4: 7 inches. Write each pair as (week, height) and plot the points.

    Grade 5 Coordinate Plane Worksheet: problems 16–20

    16. Meaning of a point

    A graph shows gallons of gas used (x) and miles driven (y) on a road trip. Point \((4, 100)\) is on the graph. Explain what the point means. Then find how many miles were driven on 1 gallon.

    17. Muffin batches

    Each batch of muffins needs 3 cups of flour. Make a table for 1, 2, 3, and 4 batches. Write ordered pairs (batches, cups) and plot them.

    18. Spot the mistake

    Jamal wants to plot a point that is 7 units right and 4 units up. He writes \((4, 7)\). Explain his mistake and write the correct ordered pair.

    19. Ethan's walk

    Ethan walks from Home \((1, 2)\) straight north to the Store \((1, 7)\). Then he walks straight east to the Park \((6, 7)\). Each unit is one block. How many blocks does he walk in all?

    01234567812345678HomeStorePark
    Ethan’s walk, one square per block.

    20. Farmers market loop

    Four stands are at A \((1, 1)\), B \((5, 1)\), C \((5, 6)\), and D \((1, 6)\). Mei walks A to B to C to D and back to A. How many blocks is the whole loop?

    0123456712345678ABCD
    Four stands at the farmers market.

    Grade 5 Coordinate Plane Worksheet: problems 21–22

    21. Diego's savings

    Diego graphs his savings as (week, dollars). Two points on his graph are \((2, 10)\) and \((5, 25)\). How much more money does he have at the later point? How many weeks passed?

    22. Hiking trail

    A trail starts at \((0, 0)\), goes east to \((3, 0)\), north to \((3, 4)\), then east to \((8, 4)\). One unit is one mile. How long is the trail? How far north of the start does it end?

    0123456789123456StartEnd
    Hiking trail, one unit equals one mile.

    The Coordinate Plane: Grade 5 worksheet answer key

    What are 5th grade coordinate plane problems like?

    The set opens with vocabulary in problem 1, then reads points A to D from a figure in problem 3. In problem 4, students plot E (3, 2), F (5, 6), G (8, 0) and H (0, 4), so two points land on the axes. Problem 7 puts P at 9 right and 2 up and Q at 2 right and 9 up, which proves that order matters.

    How do distance and shape problems build skill?

    Problems 8 and 9 measure K (2, 3) to L (7, 3) and then (4, 1) to (4, 8). Next, problem 11 connects (1, 1), (6, 1), (6, 4) and (1, 4) into a rectangle, and problem 12 asks for the fourth corner of a rectangle with corners (2, 2), (8, 2) and (8, 5). Problem 13 changes the scale so that each square is worth 2 units.

    How does this grade 5 coordinate plane worksheet connect to real life?

    In problem 15, Priya’s plant grows from 2 to 7 inches over four weeks, so students write pairs such as (1, 2) and (4, 7). Problem 16 asks what the point (4, 100) means for gas and miles. Problem 18 shows Jamal writing (4, 7) for a point 7 right and 4 up, and students explain the swap.

    How can you plot and read points without swapping them?

    • Because order matters, say right first and up second.
    • Then place a dot on the grid.
    • Also, label every point with its letter.
    • If a point sits on an axis, one coordinate is 0.
    • However, the origin has both coordinates equal to 0.
    • So (0, 0) belongs to the x-axis and the y-axis.
    • When a scale skips by 2, count the gaps, not the lines.
    • Therefore half a square equals 1 unit in problem 13.
    • After that, check the plot against the list.
    • For example, (3, 2) sits above 3 on the x-axis.
    • Meanwhile, (2, 3) sits above 2.
    • As a result, a swapped pair lands in the wrong spot.
    • Instead of guessing, trace a path from the origin.
    • Finally, mark the end with a dot.

    Where does distance come from, and how do you find a missing corner?

    • Because horizontal segments share a y-value, subtract the x-values.
    • Then the distance from (2, 3) to (7, 3) is 5.
    • Likewise, vertical segments share an x-value.
    • So (4, 1) to (4, 8) is 7 units.
    • If the points disagree in both coordinates, plot a rectangle first.
    • Also, a rectangle has matching opposite sides.
    • Therefore the fourth corner copies one x-value and one y-value.
    • In problem 12, that gives the missing corner of the rectangle.
    • However, check the answer with a sketch.
    • Next, count squares along each side to confirm.
    • Since perimeter adds four sides, double the length plus width.
    • For instance, a 5 by 3 rectangle has a perimeter of 16.
    • Thus the total changes if the scale changes.
    • Later, compare your sketch with the printed one.

    Can tables and stories become ordered pairs?

    • Because tables hold pairs, read each row as a point.
    • Then plot week 1 first.
    • Also, keep the weeks on the horizontal axis.
    • If the plant grows 2 inches in week 1, the point is (1, 2).
    • However, the next row may jump by more than 1.
    • So look at the pattern before you connect dots.
    • For example, (4, 7) shows seven inches after four weeks.
    • Meanwhile, the point (4, 100) in problem 16 shows gas and miles.
    • As a result, the coordinates carry units.
    • Therefore always explain what each number measures.
    • Instead of saying 4 and 100, say 4 gallons and 100 miles.
    • Similarly, a savings graph pairs weeks with dollars.
    • After that, describe how the points rise.
    • Finally, state the rule in one sentence.
    • In other words, the first number is the input.
    • Because the second number depends on it, it goes up the vertical axis.

    What final checks help?

    • Also, recount every move from the origin.
    • Because mistakes hide in the last step, reread the question.
    • Then compare your pair with the picture.
    • If the dot looks off, recount.
    • However, trust the numbers, not your memory.
    • Finally, sign the sheet.
    • Therefore your teacher sees careful work.
    • In addition, keep a pencil handy for fixes.

    How do you finish this set with confidence?

    Reread problem 18 and write a sentence that would stop the mistake for good. Then replot any point you missed on fresh graph paper. After that, check the key and attempt the quiz.

    Next step after this grade 5 coordinate plane worksheet: The Coordinate Plane worksheet answer key

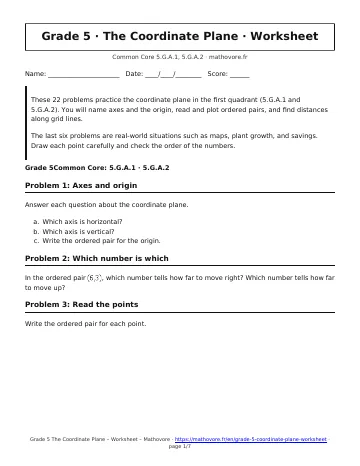

    Printable PDF · Worksheet
