Algebra 1 Functions Notation Lesson: Domain, Range and f(x) Explained

    Key takeaway: This algebra 1 functions notation lesson explains what a function is, how to read f(3) = 10, and how to name a domain and a range. A function gives every input exactly one output, and the notation tells you which input you chose.

    You will test relations with tables, mapping diagrams and the vertical line test. Then you will evaluate expressions such as \(f(x)=3x-5\) and interpret answers in stories. Each section has a small example you can copy and change. Keep a pencil nearby.

    A function is a rule that gives each input exactly one output. The domain is the set of allowed inputs and the range is the set of outputs. Function notation such as f(3) = 10 names the output for the input 3, and a vertical line test checks graphs.

    Algebra 1Common Core: F-IF.A.1 · F-IF.A.2 · F-IF.B.5

    Algebra 1 Functions Notation Lesson: key facts

    • Every input of a function has exactly one output; two inputs may share an output.
    • A graph is a function if no vertical line crosses it twice.
    • f(a) = b means the output is b when the input is a.
    • Domain is the set of inputs; range is the set of outputs.
    • Discrete data has separate values; continuous data fills an interval.

    What is a function?

    A function is a rule that assigns to each input exactly one output. If you feed the same input into a function twice, you always get the same output. Different inputs are allowed to share an output.

    Vocabulary

    Domain: the set of all allowed inputs (usually the \(x\)-values).

    Range: the set of all outputs that actually occur (usually the \(y\)-values).

    Function notation: \(f(x)\) is read “f of x” and means the output of \(f\) for the input \(x\). It is not \(f\) times \(x\).

    InputOutput1234579
    Inputs 1 and 2 share the output 5, but each input has only one arrow, so this is a function.

    How does the vertical line test work?

    A graph shows a function when no vertical line crosses it more than once. A vertical line stands for one input value, so two crossings would mean one input has two outputs.

    xy−4−224−4−2240Passes the testxy−4−224−4−2240Fails the test
    Left: one crossing, so a function. Right: two crossings, so not a function.

    How do you evaluate f(x)?

    1. Replace every \(x\) with the input, written in parentheses.
    2. Follow the order of operations: exponents, then multiplication, then addition and subtraction.
    3. Write the result as \(f(\text{input})=\text{output}\).

    Worked example. Let \(f(x)=2x^{2}-3x+1\). Then \(f(3)=2(3)^{2}-3(3)+1=18-9+1=10\). With a negative input, \(f(-2)=2(-2)^{2}-3(-2)+1=8+6+1=15\).

    input x = 32x² − 3x + 1output f(3) = 10
    The machine for \(f(x)=2x^{2}-3x+1\): feed in 3 and get out 10.

    What does f(a) = b mean in a story?

    The input \(a\) and output \(b\) each carry units. Suppose \(P(n)=2n-15\) is the profit in dollars from selling \(n\) muffins at a bake sale. Then \(P(20)=25\) says: selling 20 muffins gives a profit of \(\$25\). The input is the number of muffins and the output is the profit.

    How do you find the domain and range?

    Look at which inputs make sense, then at the outputs they produce. On a graph, the domain is the span of the graph from left to right, and the range is the span from bottom to top.

    xy−3−2−112345−3−2−1123450domainrange
    Domain: the \(x\)-values from \(-1\) to \(3\). Range: the \(y\)-values from \(-2\) to \(4\).
    Type Meaning Example
    Discrete Only separate values, such as whole numbers Number of tickets sold
    Continuous Every value in an interval Time in minutes, volume in gallons

    Functions, Domain, Range and Function Notation: frequently asked questions

    What is the difference between a relation and a function?

    A relation is any set of input-output pairs. A function is a relation in which each input has exactly one output. So every function is a relation, but not every relation is a function.

    Can two different inputs have the same output?

    Yes. For \(f(x)=x^{2}\), both \(f(2)\) and \(f(-2)\) equal 4. What is not allowed is one input with two different outputs.

    What does the notation f(x) mean?

    It means the output of the function \(f\) when the input is \(x\). It is a name for the output, not a multiplication. To evaluate \(f(5)\), replace \(x\) with 5 in the rule.

    How do you find the range from a graph?

    Find the lowest and highest \(y\)-values the graph reaches. If the graph continues forever downward or upward, the range has no lower or upper limit. Check whether endpoints are open or closed.

    When is the domain discrete?

    The domain is discrete when only separate values make sense, such as whole numbers of tickets or students. The graph is a set of unconnected points, not a line or curve.

    What is a function, and how does the vertical line test help?

    A relation is a function when no input repeats with a different output. For example, \(\{(1,4),(2,7),(3,10)\}\) passes, but \(\{(2,5),(3,8),(2,9)\}\) fails because 2 maps to both 5 and 9. Two inputs may share one output, so \(\{(0,5),(1,5),(2,5)\}\) is still a function.

    On a graph, slide a vertical line across the picture. If it ever touches two points, the graph is not a function. A curve such as \(x=y^{2}-3\) fails that test, while a V shape like \(y=|x-1|-2\) passes.

    How do you evaluate f(x) in an algebra 1 functions notation lesson?

    Replace every x with the chosen input, and use parentheses. For \(f(x)=3x-5\), the value \(f(-2)\) is \(3(-2)-5=-11\). Likewise, \(g(x)=x^{2}+2x-8\) gives \(g(3)=7\) and \(g(-4)=0\).

    Be careful with negative inputs. Without parentheses, \(-4^{2}\) would equal -16, but \((-4)^{2}\) equals 16. To solve backward, set the output equal to a number. For \(f(x)=2x+7\), the equation \(2x+7=19\) gives \(x=6\).

    What does f(a) = b mean in a story?

    Think of a plumber who charges \(C(h)=25h+40\) dollars. The statement \(C(3)=115\) says that a three-hour job costs $115. Therefore, the input is hours, and the output is dollars. Always state both units in your sentence.

    How do you find the domain and the range?

    The domain lists the allowed inputs, and the range lists the outputs. A bake sale with cupcakes at $3 each and 1 to 6 cupcakes has a discrete domain of whole numbers. In contrast, a filling tank has a continuous domain, so every time from 0 to 8 minutes is possible.

    What is a useful next step?

    Create three small relations of your own: one function, one non-function and one with a repeated output. Next, test each with a table and a vertical line. Then carry the habit into the worksheet, and write units in every story answer.

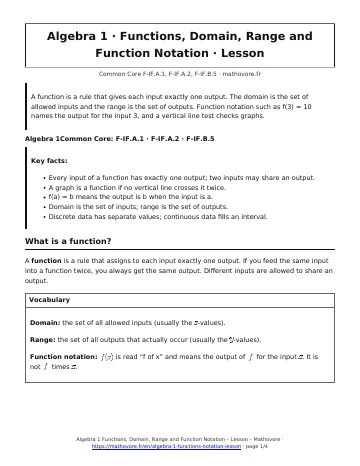

    Next step after this algebra 1 functions notation lesson: Functions, Domain, Range and Function Notation worksheet

    Printable PDF · Lesson

    Algebra 1 Functions, Domain, Range and Function Notation lesson

    • 📄 US Letter
    • 💾 89 KB
    • 🖨️ Black and white friendly
    Download the PDF
